1010ABPPS
ActiveKanebridge
SELF-TAPPING SCREW - TYPE AB - P
1010ABPPS
ActiveKanebridge
SELF-TAPPING SCREW - TYPE AB - P
Description
General part information
1010ABPPS

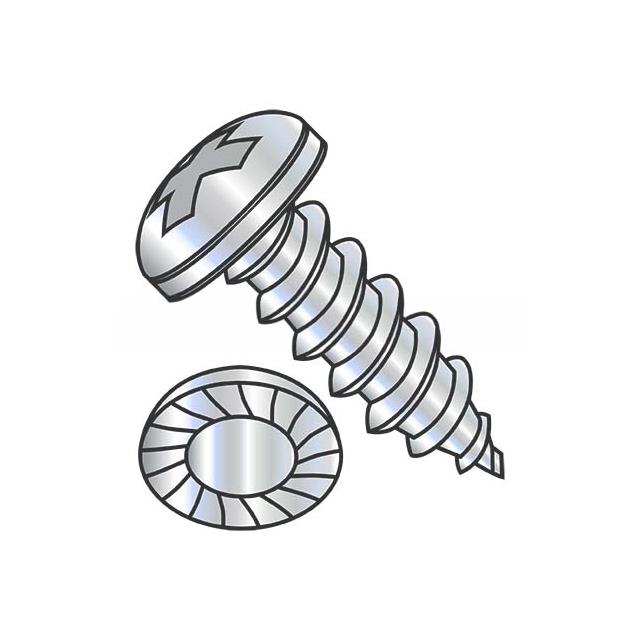

#10-16 Pan Head Self-Tapping Screw Phillips Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1010ABPPS |
|---|---|
| Drive Type | Phillips |
| Features | Serrated |
| Head Diameter | 0.365 in |
| Head Height | 0.128 in |
| Length - Below Head | 0.625 in |
| Length - Overall | 0.753 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Pan Head |
| Thread Size (Max) | 16 mm |
| Thread Size (Min) | 10 mm |
| Type | Self-Tapping Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
