131332
ActiveTE Connectivity AMP Connectors

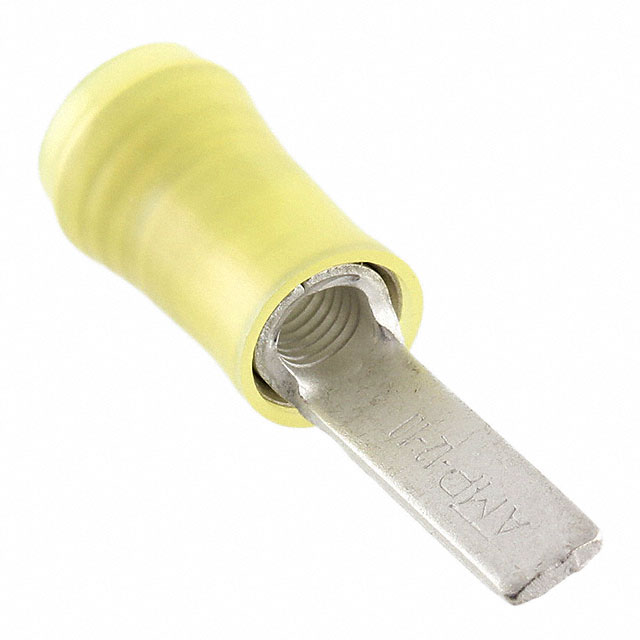

CONN WIRE PIN TERM 10-12AWG PIDG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
131332
ActiveTE Connectivity AMP Connectors
CONN WIRE PIN TERM 10-12AWG PIDG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 131332 | 1313 Series |
|---|---|---|
| Color | Yellow | Yellow, Blue |
| Contact Finish | Tin | Tin |
| Contact Material | Copper | Copper |
| Features | Serrated Termination | Serrated Termination |
| Insulation | Insulated | Insulated |
| Insulation Diameter | - | 0.115 - 2.92 mm |
| Insulation Diameter | - | 0.17 - 4.32 " |
| Insulation Diameter [Max] | 6.4 mm | 6.4 mm |
| Insulation Diameter [Max] | 0.252 " | 0.252 " |
| Insulation Diameter [Min] | 0.15 " | 0.15 " |
| Insulation Diameter [Min] | 3.81 mm | 3.81 mm |
| Length - Overall [x] | 1.15 in | 0.891 - 1.15 in |
| Length - Overall [x] | 29.21 mm | 22.63 - 29.21 mm |
| Length - Pin [x] | 0.555 in | 0.555 in |
| Length - Pin [x] | 14.1 mm | 14.1 mm |
| Length - Termination | 15.1 mm | 15.1 mm |
| Length - Termination | 0.594 in | 0.594 in |
| Length - Termination | - | 10.06 mm |
| Length - Termination | - | 0.396 in |
| Material - Insulation | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Pin Diameter | - | 0.031 " |
| Pin Diameter | - | 0.115 " |
| Pin Diameter | - | 0.8 mm |
| Pin Diameter | - | 2.92 mm |
| Pin Diameter [x] | 4.1 mm | 4.1 mm |
| Pin Diameter [x] | 0.161 " | 0.161 " |
| Pin Diameter [y] | 0.039 " | 0.039 " |
| Pin Diameter [y] | 1 mm | 1 mm |
| Termination | Crimp | Crimp |
| Wire Gauge [Max] | 12 AWG | 12 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
1313 Series
CONN WIRE PIN TERM 10-12AWG PIDG
| Part | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Length - Pin [x] | Length - Pin [x] | Length - Termination | Length - Termination | Length - Overall [x] | Length - Overall [x] | Contact Finish | Insulation | Material - Insulation | Contact Material | Termination | Features | Pin Diameter [y] | Pin Diameter [x] | Pin Diameter [x] | Pin Diameter [y] | Wire Gauge [Max] | Wire Gauge [Min] | Color | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Length - Termination [x] | Length - Termination [x] | Pin Diameter [custom] | Pin Diameter [custom] | Pin Diameter [custom] | Pin Diameter [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 131332 | 0.15 " | 6.4 mm | 3.81 mm | 0.252 " | 0.555 in | 14.1 mm | 15.1 mm | 0.594 in | 1.15 in | 29.21 mm | Tin | Insulated | Nylon, Polyamide (PA) | Copper | Crimp | Serrated Termination | 0.039 " | 4.1 mm | 0.161 " | 1 mm | 12 AWG | 10 AWG | Yellow | ||||||||
TE Connectivity AMP Connectors 131330 | 0.891 in | 22.63 mm | Tin | Insulated | Nylon, Polyamide (PA) | Copper | Crimp | Blue | 0.115 in, 2.92 mm | 0.17 ", 4.32 mm | 10.06 mm | 0.396 in | 0.031 " | 0.115 " | 0.8 mm | 2.92 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.66 | |
| 10 | $ 1.52 | |||
| 25 | $ 1.47 | |||
| 50 | $ 1.46 | |||
| 100 | $ 1.35 | |||
| 250 | $ 1.33 | |||
| 500 | $ 1.21 | |||
| 1000 | $ 1.08 | |||
| 2500 | $ 1.00 | |||
Description
General part information
1313 Series
Wire Pin Terminal Connector 10-12 AWG PIDG Crimp
Documents
Technical documentation and resources
