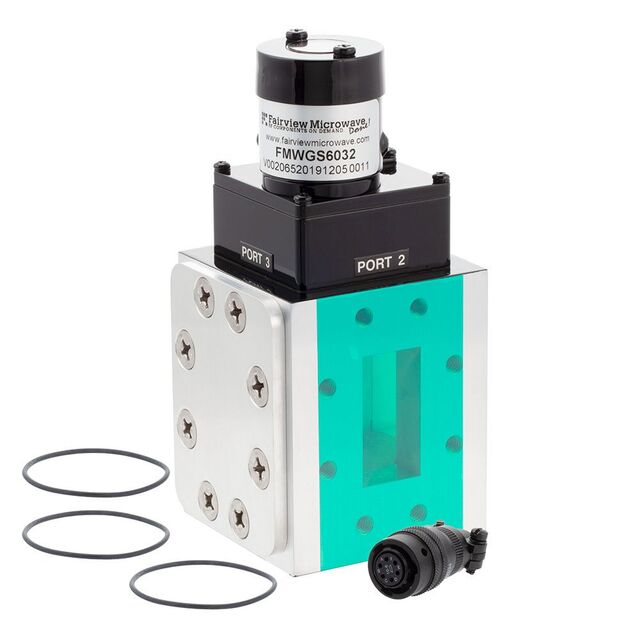

FMWGS6032
ObsoleteFairview Microwave
WG EM RELAY SWITCH WR-159 7.05 G
FMWGS6032
ObsoleteFairview Microwave
WG EM RELAY SWITCH WR-159 7.05 G
Description
General part information
FMWGS6032
RF Switch IC Radar, VSAT SPDT, DPDT
Technical Specifications
Parameters and characteristics for this part
| Specification | FMWGS6032 |
|---|---|
| Circuit | SPDT, DPDT |
| Frequency Range (Max) | 7.05 GHz |
| Frequency Range (Min) | 4.9 GHz |
| Insertion Loss (max) | 0.02 dB |
| Isolation (Min) | 70 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| RF Type | VSAT, Radar |
| Topology | Reflective |
| Voltage - Supply (Maximum) | 32 V |
| Voltage - Supply (Minimum) | 21 VDC |
