Description
General part information

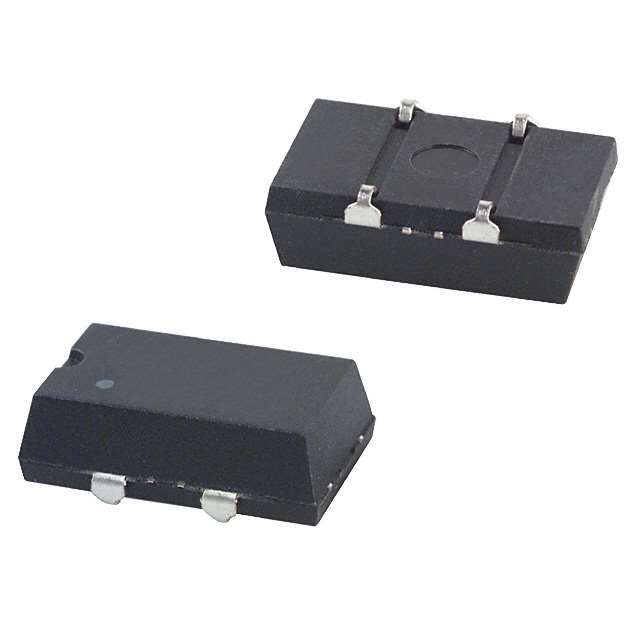

ECS-8FM-500-TR
50 MHz XO (Standard) CMOS, TTL Oscillator 5V Enable/Disable 4-SOJ, 5.08mm pitch
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS-8FM-500-TR |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 35 mA |
| Frequency | 50 MHz |
| Frequency Stability | 200 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.185 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS, TTL |
| Package / Case | 5.08mm pitch, 4-SOJ |
| Package Pitch | 0.2 in |
| Size / Dimension Length | 0.551 in |
| Size / Dimension Width | 0.341 in |
| Type | XO (Standard) |
| Voltage - Supply | 5 VDC |
