RC03-200-0250
ActivePulse Electronics
CURRENT SENSOR CURRENT SENSOR AC/DC CURRENT 3-PIN CARTON
RC03-200-0250
ActivePulse Electronics
CURRENT SENSOR CURRENT SENSOR AC/DC CURRENT 3-PIN CARTON
Description
General part information
RC03-200-0250

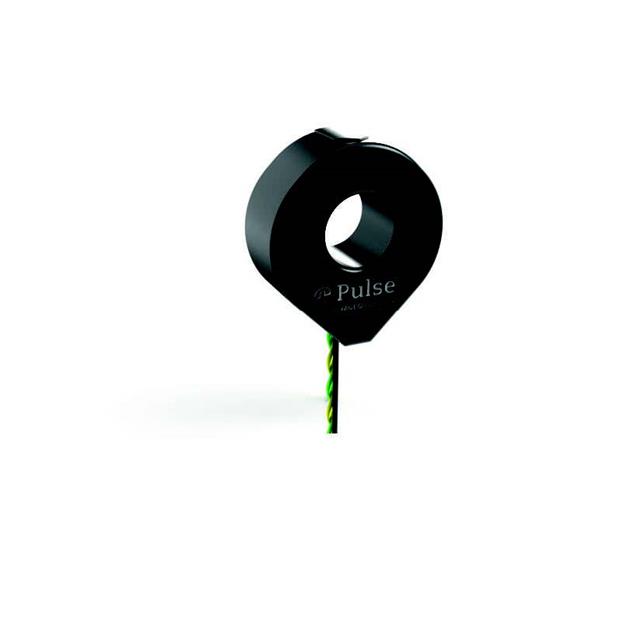

Current Sensor 2500A 1 Channel Rogowski Coil Module, Single Pass Through
Technical Specifications
Parameters and characteristics for this part
| Specification | RC03-200-0250 |
|---|---|
| Current - Sensing | 2500 A |
| For Measuring | AC, DC |
| Frequency | 50 kHz |
| Mounting Type | Free Hanging |
| Number of Channels | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | Module, Single Pass Through |
| Sensitivity | 0.2 mV/A |
| Sensor Type | Rogowski Coil |
