4-87456-5

Active

TE Connectivity AMP Connectors

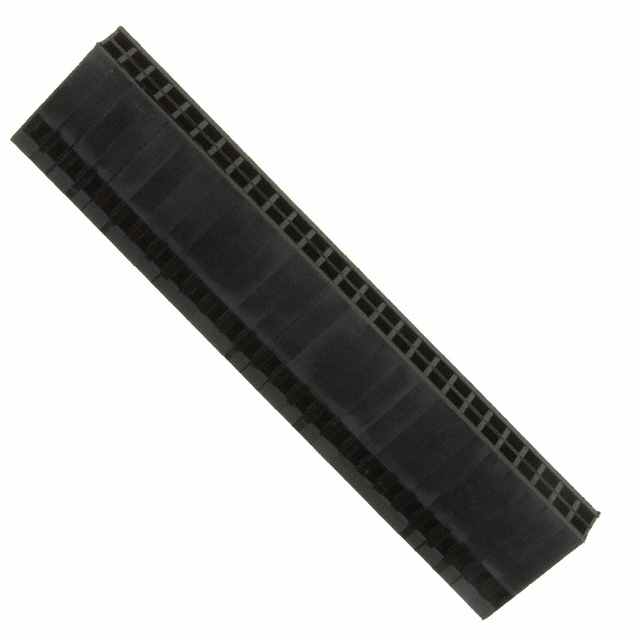

CONN RCPT HSG 54POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

4-87456-5

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 54POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2200	$ 3.98

Description

General part information

87456 Series

54 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Specification	4-87456-5	87456 Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Insulation Material	Nylon, Polyamide (PA), Glass Filled	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	54	8 - 72
Number of Positions	-	16
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in

Part	Note	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Rows	Contact Termination	Number of Positions	Pitch [x]	Pitch [x]	Insulation Material	Mounting Type	Row Spacing [x]	Row Spacing	Color
TE Connectivity AMP Connectors 4-87456-5	Contacts Not Included	Female Socket	-65 ░C	105 ░C	Receptacle	2	Crimp	54	2.54 mm	0.1 in	Glass Filled, Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.1 in	2.54 mm	Black
TE Connectivity AMP Connectors 87456-7	Contacts Not Included	Female Socket	-65 ░C	105 ░C	Receptacle	2	Crimp	12	2.54 mm	0.1 in	Glass Filled, Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.1 in	2.54 mm	Black
TE Connectivity AMP Connectors 3-87456-7	Contacts Not Included	Female Socket	-65 ░C	105 ░C	Receptacle	2	Crimp	44	2.54 mm	0.1 in	Glass Filled, Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.1 in	2.54 mm	Black
TE Connectivity AMP Connectors 87456-4	Contacts Not Included	Female Socket	-65 ░C	105 ░C	Receptacle	2	Crimp	8	2.54 mm	0.1 in	Glass Filled, Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.1 in	2.54 mm	Black
TE Connectivity AMP Connectors 3-87456-3	Contacts Not Included	Female Socket			Receptacle	2	Crimp	38	2.54 mm	0.1 in		Free Hanging (In-Line)	0.1 in	2.54 mm	Black
TE Connectivity AMP Connectors 4-87456-3	Contacts Not Included	Female Socket	-65 ░C	105 ░C	Receptacle	2	Crimp	42	2.54 mm	0.1 in	Glass Filled, Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.1 in	2.54 mm	Black
TE Connectivity AMP Connectors 3-87456-0	Contacts Not Included	Female Socket	-65 ░C	105 ░C	Receptacle	2	Crimp	34	2.54 mm	0.1 in	Glass Filled, Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.1 in	2.54 mm	Black
TE Connectivity AMP Connectors 87456-3	Contacts Not Included	Female Socket	-65 ░C	105 ░C	Receptacle	2	Crimp	8	2.54 mm	0.1 in	Glass Filled, Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.1 in	2.54 mm	Black
TE Connectivity AMP Connectors 87456-6	Contacts Not Included	Female Socket	-65 ░C	105 ░C	Receptacle	2	Crimp	10	2.54 mm	0.1 in	Glass Filled, Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.1 in	2.54 mm	Black
TE Connectivity AMP Connectors 2-87456-3	Contacts Not Included	Female Socket	-65 ░C	105 ░C	Receptacle	2	Crimp	28	2.54 mm	0.1 in	Glass Filled, Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.1 in	2.54 mm	Black
