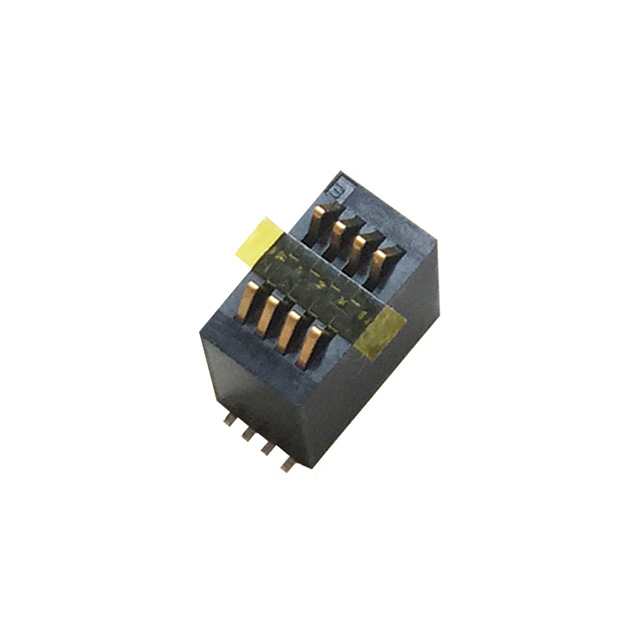

009148008080206

Active

KYOCERA AVX

CONN SPRING MOD 8POS SMD

Search across all available documentation for this part.

Active

KYOCERA AVX

CONN SPRING MOD 8POS SMD

Technical Specifications

Parameters and characteristics for this part

Specification	009148008080206

Connector Type	Compression Contact, Non-Gendered
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Material	Beryllium Copper
Mounting Type	Surface Mount
Number of Contacts	8
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	3.85 mm
Row Spacing	0.152 in

CONN SPRING MOD 8POS SMD

Part	Row Spacing	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Connector Type	Contact Finish	Number of Rows	Number of Contacts	Material	Mounting Type
KYOCERA AVX 009148008080206	3.85 mm	0.152 in	10 Áin	0.25 Ám	2.54 mm	0.1 in	Compression Contact, Non-Gendered	Gold	2	8	Beryllium Copper	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Spring Compression Contact, Non-Gendered Connector Surface Mount
