SM4211
ObsoleteFairview Microwave
ADAPT JACK-JACK SMA 1.7 VSWR
SM4211
ObsoleteFairview Microwave
ADAPT JACK-JACK SMA 1.7 VSWR
Description
General part information
SM4211

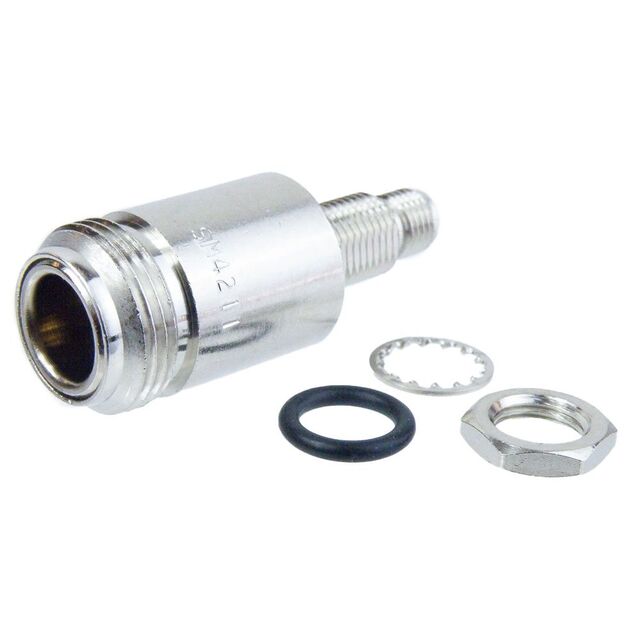

Adapter Coaxial Connector N Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM4211 |
|---|---|
| Adapter Series | SMA to N |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | SMA Jack |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -95 °C |
| Style | Straight |
