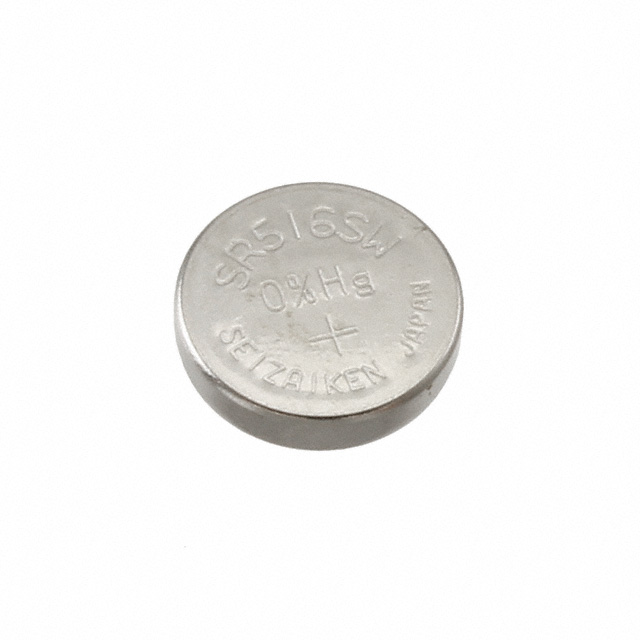

SR516SW
ActiveSeiko Instruments
BATTERY SLVR OX 1.55V COIN 5.8MM
SR516SW
ActiveSeiko Instruments
BATTERY SLVR OX 1.55V COIN 5.8MM
Description
General part information
SR516SW
Coin, 5.8mm Silver Oxide 1.55 V Battery Non-Rechargeable (Primary)
Technical Specifications
Parameters and characteristics for this part
| Specification | SR516SW |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size Dimension | 5.8 mm |
| Battery Chemistry | Silver Oxide |
| Capacity (Charge) | 12.5 mAh |
| Discharge Rate (Current) | 20 µA |
| Size / Dimension Diameter | 0.23 in |
| Size / Dimension Height | 0.06 in |
| Termination Style | Requires Holder |
| Voltage - Rated | 1.55 V |
| Weight | 0.18 g |
