6976-SS
ActiveRAF Electronic Hardware
SHOULDER SCREW CHEE HEAD 3/8"-16
6976-SS
ActiveRAF Electronic Hardware
SHOULDER SCREW CHEE HEAD 3/8"-16
Description
General part information
6976-SS

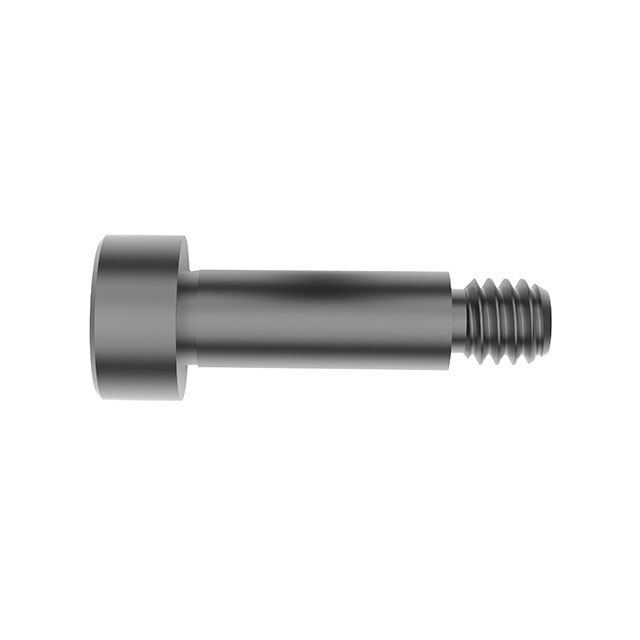

3/8"-16 Cheese Head Shoulder Screw Drive Stainless Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 6976-SS |
|---|---|
| Head Diameter | 0.625 in |
| Head Height | 0.25 in |
| Length - Below Head | 0.813 in |
| Length - Overall | 1.063 in |
| Material | Stainless Steel |
| Screw Head Type | Cheese Head |
| Thread Pitch (TPI) | 16 TPI |
| Thread Size (Nominal) | 0.375 in |
| Type | Shoulder Screw |
