STX-3100-3C
ActiveKycon, Inc.
STEREO JACK 3.5 MM SW THREADED 3
Deep-Dive with AI
Search across all available documentation for this part.
STX-3100-3C
ActiveKycon, Inc.
STEREO JACK 3.5 MM SW THREADED 3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STX-3100-3C |
|---|---|
| Actual Diameter [diameter] | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm |
| Body Color | Silver, Black |
| Body Material | Brass |
| Connector Type | Phone Jack |
| Contact Material | Brass, Phosphor Bronze |
| Contact Material - Plating [custom] | Tin, Nickel |
| Current Rating (Amps) | 3 A |
| Features | Board Guide, Thread Lock |
| Gender | Female |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Internal Switch(s) | False |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Kinked Pin |
| Thread Size | M6 |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.73 | |
| 10 | $ 1.47 | |||
| 25 | $ 1.38 | |||
| 50 | $ 1.31 | |||
| 100 | $ 1.25 | |||
| 250 | $ 1.17 | |||
| 500 | $ 1.11 | |||
| 1000 | $ 1.06 | |||
| 2500 | $ 0.99 | |||
Description
General part information
STX-3100-3C

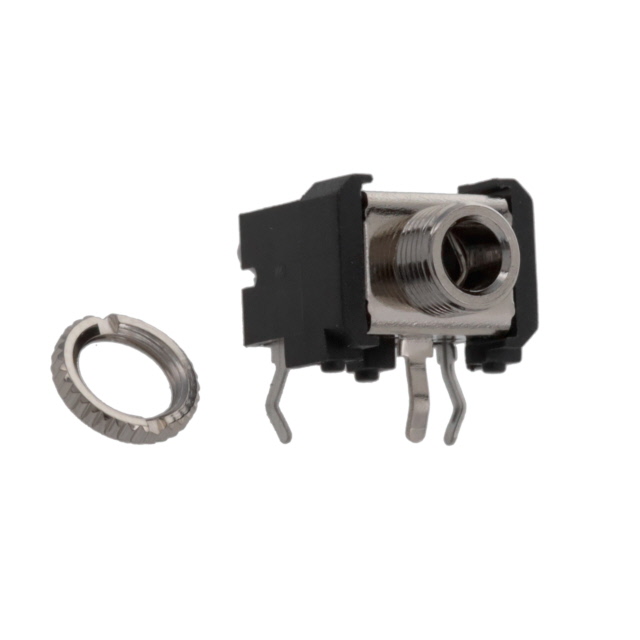

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Kinked Pin
