51-141.025D

Active

EAO

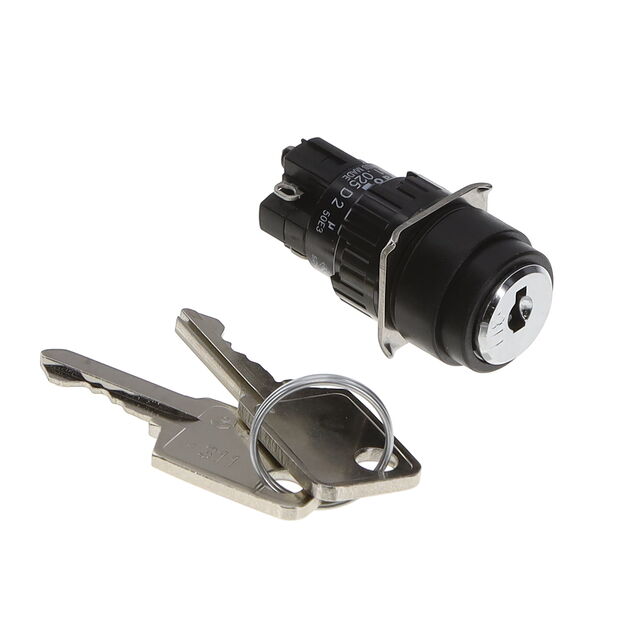

SWITCH KEYLOCK 2POS DPST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLOCK 2POS DPST 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	51-141.025D	51-141 Series

Actuator Type	Flat Key	Flat Key
Angle of Throw	42 °	42 °
Circuit	DPST-NO/NC	DPST-NO/NC
Contact Timing	Not Specified	Not Specified
Current Rating (Amps)	5 A	5 A
Depth Behind Flange	26.5 mm	26.5 - 36 mm
Electrical Life	-	50000 Cycles
Features	IP65	IP65
Key Removable Positions	1 only	1 only
Number of Positions	2	2
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Switch Function	Off-Mom, On-Mom	Off-Mom, On-Mom
Termination Style	Solder Lug	Quick Connect, Solder, Solder Lug
Termination Style	-	0.11 in
Termination Style	-	2.8 mm
Voltage Rating - AC	250 V	250 V

Rotary Switches Rotary Switch, Standard, 1/8" shaft, 22.5°, 1 deck, 2 pole/deck, 5 positions/pole, non-shorting

Part	Switch Function	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Features	Termination Style	Termination Style	Termination Style	Key Removable Positions	Current Rating (Amps)	Number of Positions	Circuit	Actuator Type	Contact Timing	Panel Cutout Dimensions [diameter]	Angle of Throw	Depth Behind Flange	Electrical Life
EAO 51-141.022D	Off-Mom, On-Mom	250 V	55 °C	-25 °C	IP65	0.11 in	Quick Connect, Solder	2.8 mm	1 only	5 A	2	DPST-NO/NC	Flat Key	Not Specified	16 mm	42 °	36 mm
EAO 51-141.022K	Off-Mom, On-Mom	250 V	55 °C	-25 °C	IP65	0.11 in	Quick Connect, Solder	2.8 mm	1 only	5 A	2	DPST-NO/NC	Flat Key	Not Specified	16 mm	42 °	35.5 mm	50000 Cycles
EAO 51-141.025D	Off-Mom, On-Mom	250 V	55 °C	-25 °C	IP65		Solder Lug		1 only	5 A	2	DPST-NO/NC	Flat Key	Not Specified	16 mm	42 °	26.5 mm
