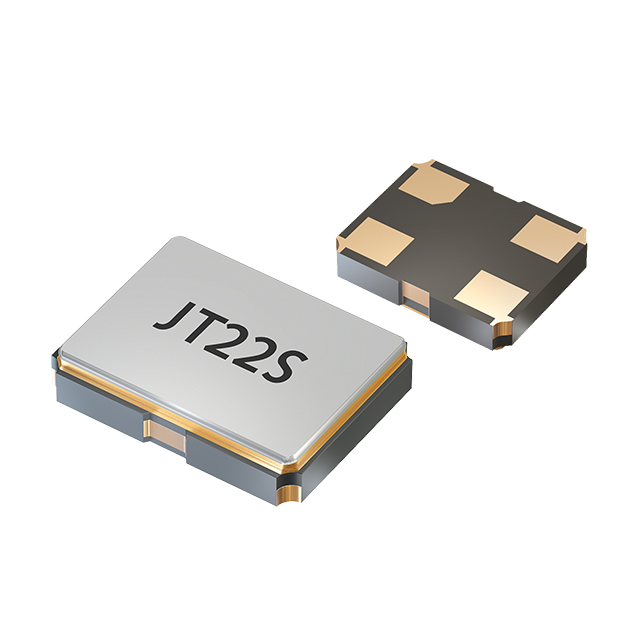

O 10,0-JT22S-B-K-3,3-LF
ActiveJauch Quartz
XTAL OSC TCXO 10.0000MHZ SNWV
O 10,0-JT22S-B-K-3,3-LF
ActiveJauch Quartz
XTAL OSC TCXO 10.0000MHZ SNWV
Description
General part information
O 10,0-JT22S-B-K-3,3-LF
10 MHz TCXO Clipped Sine Wave Oscillator 3.3V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | O 10,0-JT22S-B-K-3,3-LF |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 1.5 mA |
| Frequency | 10 MHz |
| Frequency Stability | 2 ppm |
| Height - Seated (Max) | 0.035 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | TCXO |
| Voltage - Supply | 3.3 V |
