FMANOM1099
ActiveFairview Microwave
FAKRA JACK 10-IN-1 CELLULAR, WI-
FMANOM1099
ActiveFairview Microwave
FAKRA JACK 10-IN-1 CELLULAR, WI-
Description
General part information
FMANOM1099

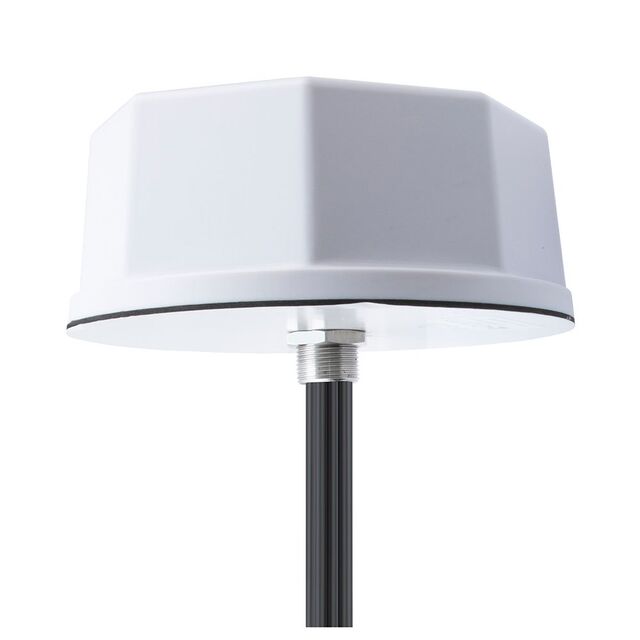

RF ANTENNA 4G/5G, GPS, Wi-Fi Dome Fakra Female Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FMANOM1099 |
|---|---|
| Antenna Type | Dome |
| Applications | Wi-Fi, 4G/5G, GPS |
| Features | Cable, 5.18M |
| Frequency (Center/Band) | 2.195GHz, 3.75GHz, 5.45GHz, 788.5MHz, 2.45GHz |
| Frequency (Center/Band) - 1 | 788.5 MHz |
| Frequency (Center/Band) - 2 | 2.195 GHz |
| Frequency (Center/Band) - 3 | 2.45 GHz |
| Frequency (Center/Band) - 4 | 3.75 GHz |
| Frequency (Center/Band) - 5 | 5.45 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 617 MHz |
| Frequency Range (Band 2) Maximum | 2.7 GHz |
| Frequency Range (Band 2) Minimum | 1.69 GHz |
| Frequency Range (Band 3) Maximum | 2.5 GHz |
| Frequency Range (Band 3) Minimum | 2.4 GHz |
| Frequency Range (Band 4) Maximum | 4.2 GHz |
| Frequency Range (Band 4) Minimum | 3.3 GHz |
| Frequency Range (Band 5) Maximum | 6 GHz |
| Frequency Range (Band 5) Minimum | 4.9 GHz |
| Gain | 5 dBi, 8 dBi, 6 dBi, 4 dBi, 7 dBi |
| Height (Max) | 3.15 in |
| Ingress Protection | IP69K |
| Mounting Type | Panel Mount |
| Number of Bands | 5 |
| Power - Max | 10 VA |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Termination Type | Fakra Female |
| VSWR | 2 |
