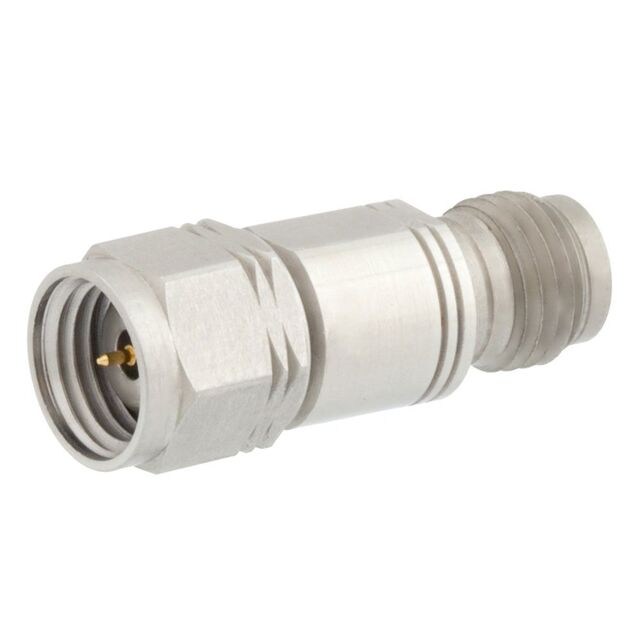

SA6510-03
ActiveFairview Microwave
FXD ATTN PLUG-JACK 1.85MM SS 1.6
SA6510-03
ActiveFairview Microwave
FXD ATTN PLUG-JACK 1.85MM SS 1.6
Description
General part information
SA6510-03
RF Attenuators 3dB 0 Hz ~ 65 GHz 50 Ohms 1W 1.85mm In-Line Module
Technical Specifications
Parameters and characteristics for this part
| Specification | SA6510-03 |
|---|---|
| Attenuation Value | 3 dB |
| Frequency Range (Max) | 65 GHz |
| Frequency Range (Min) | 0 Hz |
| Impedance | 50 Ohm |
| Package / Case | 1.85mm In-Line Module |
| Package / Case Dimension | 1.85 mm |
| Package / Case Type | In-Line Module |
| Package Diameter | 1.85 mm |
| Package Name | In-Line Module |
| Power (Watts) | 1 W |
