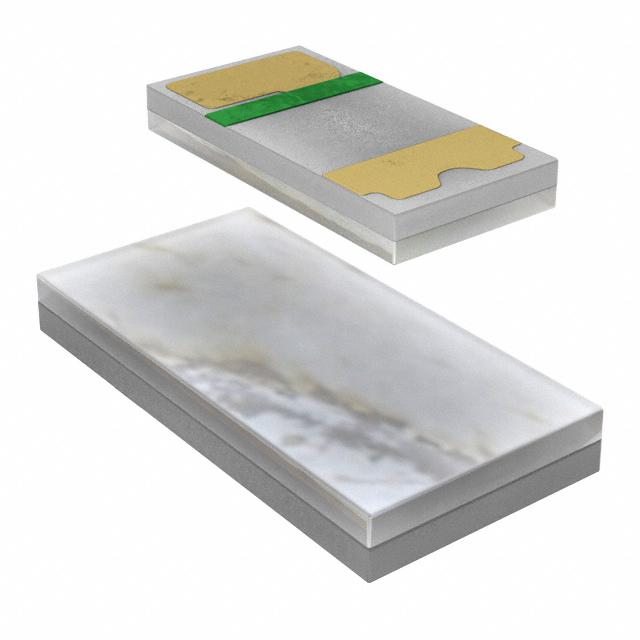

SML-LXFP0603SIC-TR
ActiveLumex Opto/Components Inc.
LED RED CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SML-LXFP0603SIC-TR
ActiveLumex Opto/Components Inc.
LED RED CLEAR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SML-LXFP0603SIC-TR | SML-LXFP0603 Series |
|---|---|---|
| Color | Red | White, Blue, Green, Yellow, Red |
| Configuration | Standard | Standard |
| Current - Test | 5 mA | 5 - 15 mA |
| Height (Max) [Max] | 0.2 mm | 0.2 mm |
| Lens Color | Colorless | Colorless, Yellow |
| Lens Size [x] | 1.6 mm | 1.6 mm |
| Lens Size [y] | 0.8 mm | 0.8 mm |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Transparency | Clear | Clear, Diffused |
| Millicandela Rating | 33 mcd | 13 - 630 mcd |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm | 1.6 mm |
| Size / Dimension [y] | 0.8 mm | 0.8 mm |
| Supplier Device Package | SMD | SMD |
| Viewing Angle | 130 ° | 130 ° |
| Voltage - Forward (Vf) (Typ) | 2 V | 2 - 3.2 V |
| Wavelength - Peak | - | 525 - 610 nm |
SML-LXFP0603 Series
LED ORANGE CLEAR SMD
| Part | Package / Case | Lens Style | Voltage - Forward (Vf) (Typ) | Current - Test | Configuration | Mounting Type | Millicandela Rating | Viewing Angle | Height (Max) [Max] | Lens Transparency | Size / Dimension [x] | Size / Dimension [y] | Lens Size [y] | Lens Size [x] | Lens Color | Wavelength - Peak | Supplier Device Package | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. SML-LXFP0603SOC-TR | 0603 (1608 Metric) | Rectangle with Flat Top | 2 V | 5 mA | Standard | Surface Mount | 45 mcd | 130 ° | 0.2 mm | Clear | 1.6 mm | 0.8 mm | 0.8 mm | 1.6 mm | Colorless | 610 nm | SMD | |
Lumex Opto/Components Inc. SML-LXFP0603UWW-TR | 0603 (1608 Metric) | Rectangle with Flat Top | 2.95 V | 5 mA | Standard | Surface Mount | 158 mcd | 130 ° | 0.2 mm | Diffused | 1.6 mm | 0.8 mm | 0.8 mm | 1.6 mm | Yellow | SMD | White | |
Lumex Opto/Components Inc. SML-LXFP0603USBCTR | 0603 (1608 Metric) | Rectangle with Flat Top | 3 V | 5 mA | Standard | Surface Mount | 50 mcd | 130 ° | 0.2 mm | Clear | 1.6 mm | 0.8 mm | 0.8 mm | 1.6 mm | Colorless | SMD | Blue | |
Lumex Opto/Components Inc. SML-LXFP0603UPGCTR | 0603 (1608 Metric) | Rectangle with Flat Top | 3.2 V | 15 mA | Standard | Surface Mount | 630 mcd | 130 ° | 0.2 mm | Clear | 1.6 mm | 0.8 mm | 0.8 mm | 1.6 mm | Colorless | 525 nm | SMD | Green |
Lumex Opto/Components Inc. SML-LXFP0603SYC-TR | 0603 (1608 Metric) | Rectangle with Flat Top | 2 V | 5 mA | Standard | Surface Mount | 33 mcd | 130 ° | 0.2 mm | Clear | 1.6 mm | 0.8 mm | 0.8 mm | 1.6 mm | Colorless | 590 nm | SMD | Yellow |
Lumex Opto/Components Inc. SML-LXFP0603SUGCTR | 0603 (1608 Metric) | Rectangle with Flat Top | 2 V | 5 mA | Standard | Surface Mount | 13 mcd | 130 ° | 0.2 mm | Clear | 1.6 mm | 0.8 mm | 0.8 mm | 1.6 mm | Colorless | SMD | Green | |
Lumex Opto/Components Inc. SML-LXFP0603SIC-TR | 0603 (1608 Metric) | Rectangle with Flat Top | 2 V | 5 mA | Standard | Surface Mount | 33 mcd | 130 ° | 0.2 mm | Clear | 1.6 mm | 0.8 mm | 0.8 mm | 1.6 mm | Colorless | SMD | Red |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.20 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.46 | ||
| 10 | $ 0.30 | |||
| 100 | $ 0.20 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 3000 | $ 0.11 | ||
| 6000 | $ 0.10 | |||
| 15000 | $ 0.09 | |||
| 30000 | $ 0.08 | |||
| 75000 | $ 0.08 | |||
Description
General part information
SML-LXFP0603 Series
Red LED Indication - Discrete 2V 0603 (1608 Metric)
