Description
General part information

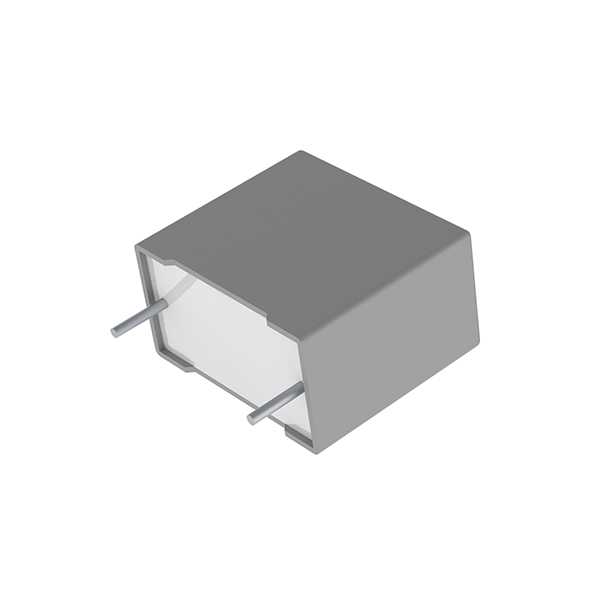

R75QN3150AA00J
0.15 µF Film Capacitor 300V 1000V (1kV) Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | R75QN3150AA00J |
|---|---|
| Applications | Automotive, High Frequency, Switching, DV/DT, High Pulse |
| Capacitance | 0.15 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 18 mOhm |
| Height - Seated (Max) | 0.732 in |
| Lead Spacing | 0.886 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 1.043 in |
| Size / Dimension Width | 0.394 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 300 V |
| Voltage Rating - DC | 1 kV |
