4300.0103
ActiveSCHURTER Inc.
PWR ENT RCPT IEC320-C8 PNL SLDR
4300.0103
ActiveSCHURTER Inc.
PWR ENT RCPT IEC320-C8 PNL SLDR
Description
General part information
4300.0103

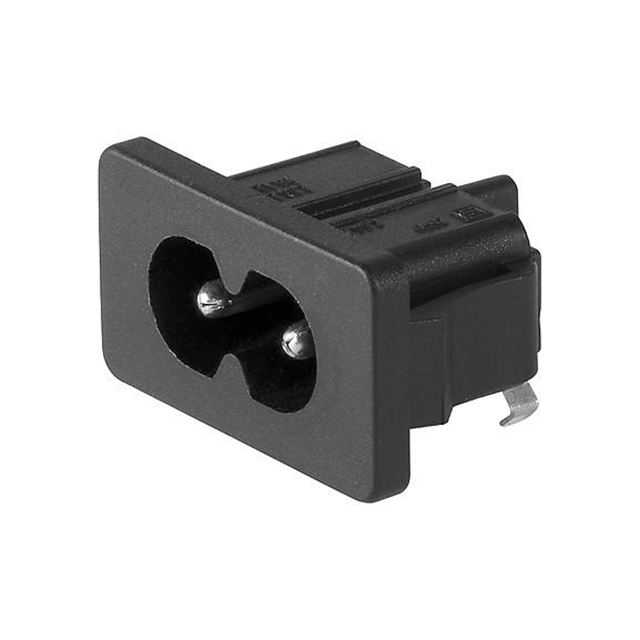

Power Entry Connector Receptacle, Male Pins IEC 320-C8, Non-Polarized Panel Mount, Snap-In; Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 4300.0103 |
|---|---|
| Accomodates a Fuse | No |
| Approval Agency | CCC, VDE, UL |
| Connector Style | IEC 320-C8, Non-Polarized |
| Connector Type | Receptacle, Male Pins |
| Current Rating - Appliance Inlet | 2.5 A |
| Filter Type | Unfiltered, Commercial |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In, Through Hole, Right Angle |
| Number of Positions | 2 |
| Panel Thickness (Max) | 0.079 in |
| Panel Thickness (Min) | 0.024 in |
| Termination | Solder |
| Voltage Rating - Appliance Inlet | 250 VAC |
