Description
General part information

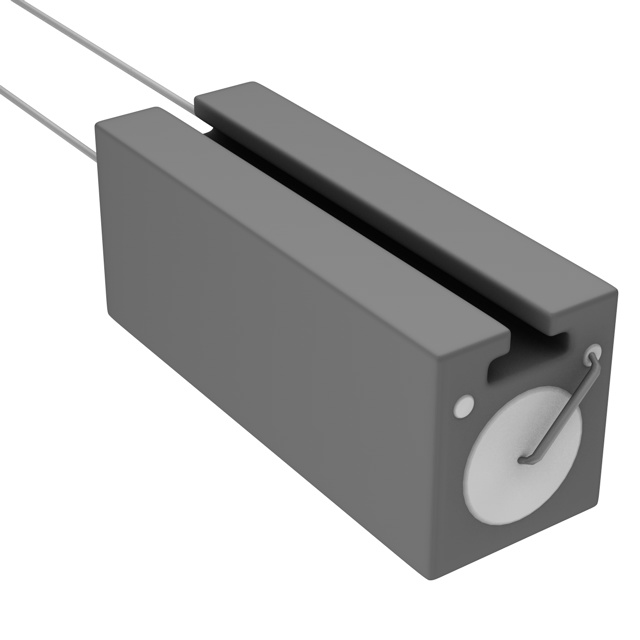

PSM500JB-33R
33 Ohms ±5% 5W Through Hole Resistor Radial Anti-Arc, Flame Proof, Moisture Resistant, Safety Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | PSM500JB-33R |
|---|---|
| Composition | Wirewound |
| Features | Anti-Arc, Safety, Flame Proof, Moisture Resistant |
| Height - Seated (Max) | 0.331 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 350 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Power (Watts) | 5 W |
| Resistance | 33 Ohms |
| Size / Dimension Length | 0.984 in |
| Size / Dimension Width | 0.276 in |
| Tolerance | 5 % |
