Description
General part information
5610104100

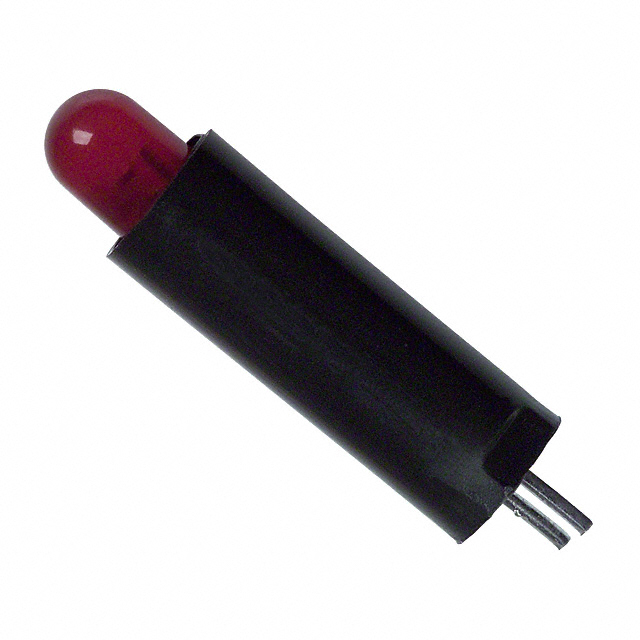

LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused 5V 10mA Round with Domed Top 5mm, T-1 3/4 Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 5610104100 |
|---|---|
| Color | Red |
| Configuration | Single |
| Current | 10 mA |
| Lens Size | 5 mm |
| Lens Size (Code) | T-1 3/4 |
| Lens Style | Round, Domed Top |
| Lens Type | Diffused |
| Millicandela Rating | 8 mcd |
| Mounting Type | Through Hole |
| Viewing Angle | 60 ° |
| Voltage Rating | 5 V |
| Wavelength - Peak | 635 nm |
