MSW07E20-16P

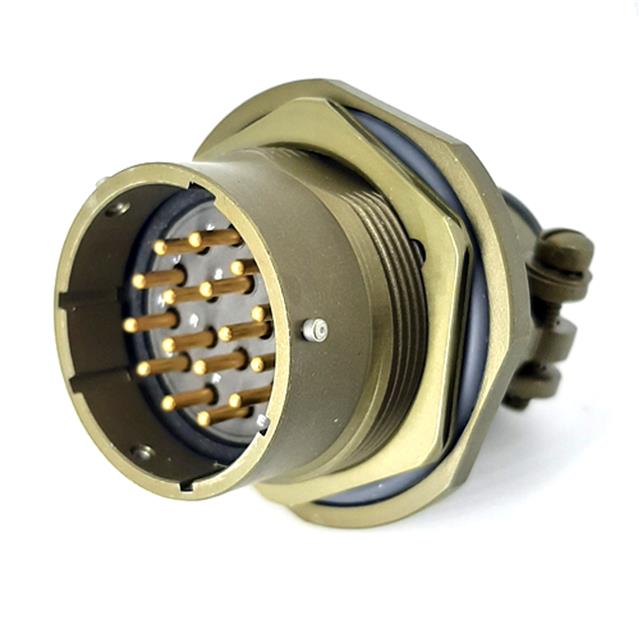

16 Position Circular Connector Plug, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | MSW07E20-16P |
|---|---|
| Applications | Military |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Cadmium |
| Current Rating | 13 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Positions | 16 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Finish | Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 20 mm |
| Shell Size - Insert Width | 16 mm |
| Termination | Solder |
| Voltage Rating | 800 V |
