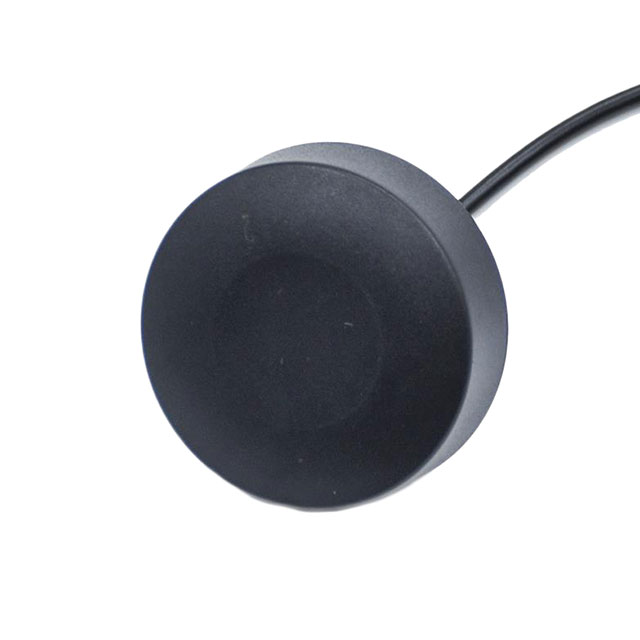

RDM-W5C9-4515-RP1M-GE-001

Active

Raltron Electronics

RF ANT 2.4GHZ/5.5GHZ PUCK RP-SMA

Search across all available documentation for this part.

Active

Raltron Electronics

RF ANT 2.4GHZ/5.5GHZ PUCK RP-SMA

Technical Specifications

Parameters and characteristics for this part

RF ANT 2.4GHZ/5.5GHZ PUCK RP-SMA

Part	Applications	Frequency Group	RF Family/Standard	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Ingress Protection	Frequency Range [Max]	Frequency Range [Min]	Frequency (Center/Band)	Termination	Gain	Features	VSWR	Number of Bands	Mounting Type
Raltron Electronics RDM-W5C9-4515-RP1M-GE-001	802.15.4, Bluetooth, Wi-Fi	Wide Band	802.15.4, Bluetooth, WiFi	0.598 in	15.2 mm	IP66, IP67	2.5 GHz, 5.85 GHz	2.4 GHz, 5.15 GHz	2.4 GHz, 5.5 GHz	RP-SMA Male	4.5 dBi, 5 dBi	Cable - 1m	2, 2.5	2	Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 802.15.4, Bluetooth, Wi-Fi Puck RP-SMA Male Screw
