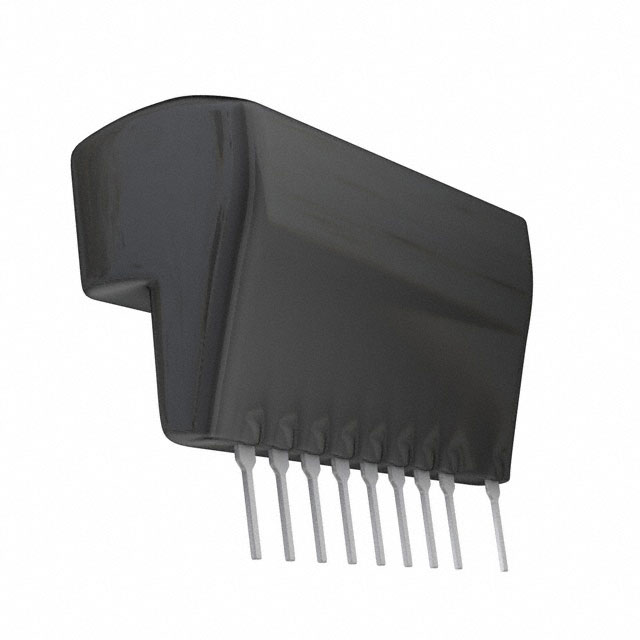

BP5033-12
ObsoleteRohm Semiconductor
AC/DC CONVERTER 12V 1W
BP5033-12
ObsoleteRohm Semiconductor
AC/DC CONVERTER 12V 1W
Description
General part information
BP5033-12
Enclosed AC DC Converters 1 Output 12V 100mA 113 ~ 170 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | BP5033-12 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 100 mA |
| Efficiency | 69 % |
| Line Regulation | 20 mV |
| Load Regulation (mV) | 10 mV |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Package Leads | 8 Leads |
| Package Name | 10-SIP Module |
| Power (Watts) | 1 W |
| Size / Dimension Height | 0.61 in |
| Size / Dimension Length | 1.11 in |
| Size / Dimension Width | 0.41 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 170 VAC |
| Voltage - Input (AC) Minimum | 113 VAC |
| Voltage - Output 1 | 12 V |
