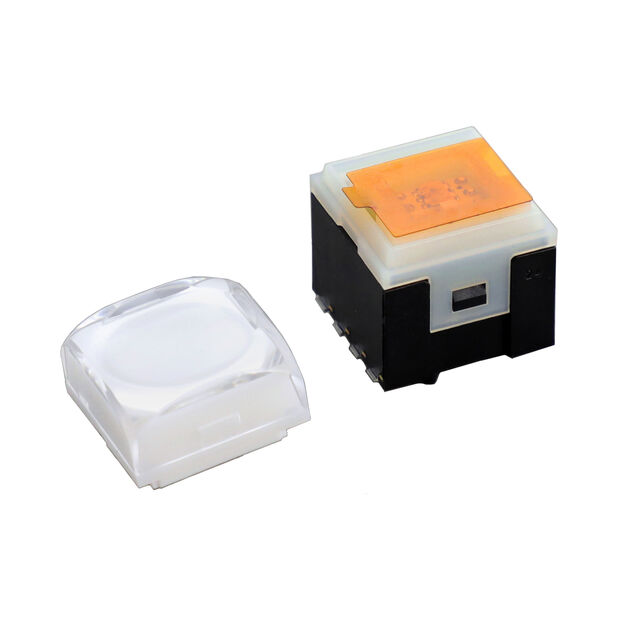

KP0415ANG03RGBW-2SJB
ActiveNKK Switches
PUSHBUTTON SWITCH, KP04 SERIES, SPST, OFF-(ON), SQUARE, TRANSPARENT
KP0415ANG03RGBW-2SJB
ActiveNKK Switches
PUSHBUTTON SWITCH, KP04 SERIES, SPST, OFF-(ON), SQUARE, TRANSPARENT
Description
General part information
KP0415ANG03RGBW-2SJB
Pushbutton Switch SPST-NO Standard, Illuminated Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | KP0415ANG03RGBW-2SJB |
|---|---|
| Actuator Type | Square, Button |
| Circuit | SPST-NO |
| Color | Red, Green, White, Blue |
| Color - Actuator/Cap | Clear (White Filter/Diffuser) |
| Current Rating | 100 mA |
| Electrical Life (Cycles) | 3000000 Cycles |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 2.65, 3.08 VDC, 2.9, 2.1 |
| Illumination Voltage (Nominal) | 3.08 VDC, 2.65 VDC, 2.9 VDC, 2.1 VDC |
| Mechanical Life (Cycles) | 3000000 Cycles |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | Off-Mom |
| Termination Style | SMD (SMT) Tab |
| Type | Standard, Illuminated |
| Voltage Rating - DC | 12 V |
