AIMH021-100A-420B

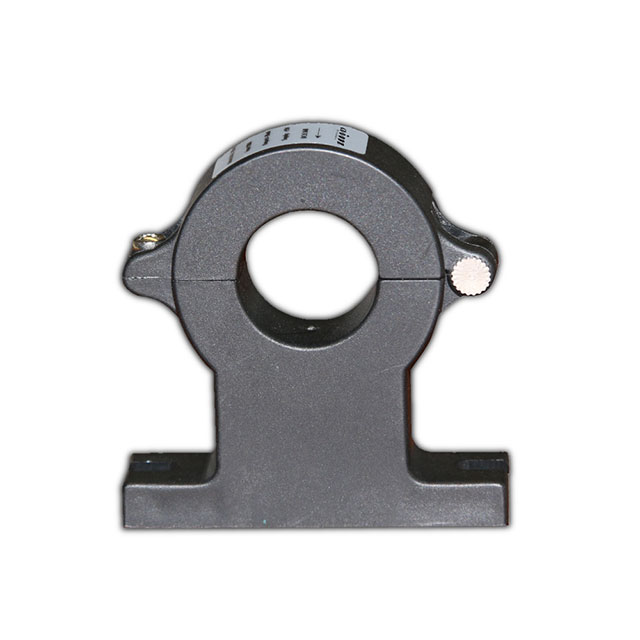

Current Sensor 100A 1 Channel Hall Effect Bidirectional Module, Single Pass Through
Technical Specifications
Parameters and characteristics for this part
| Specification | AIMH021-100A-420B |
|---|---|
| Accuracy | 1 % |
| Current - Sensing | 100 A |
| Current - Supply (Max) | 35 mA |
| For Measuring | DC |
| Frequency | DC |
| Mounting Type | Panel Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -10 °C |
| Output Current Range 1 (Max) | 20 mA |
| Output Current Range 1 (Min) | 4 mA |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensor Type | Hall Effect |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | -15 V |
