1162.2
ActiveConta-Clip, Inc.
CONN TERM BLK FEED THRU 6-10AWG
1162.2
ActiveConta-Clip, Inc.
CONN TERM BLK FEED THRU 6-10AWG
Description
General part information
1162.2

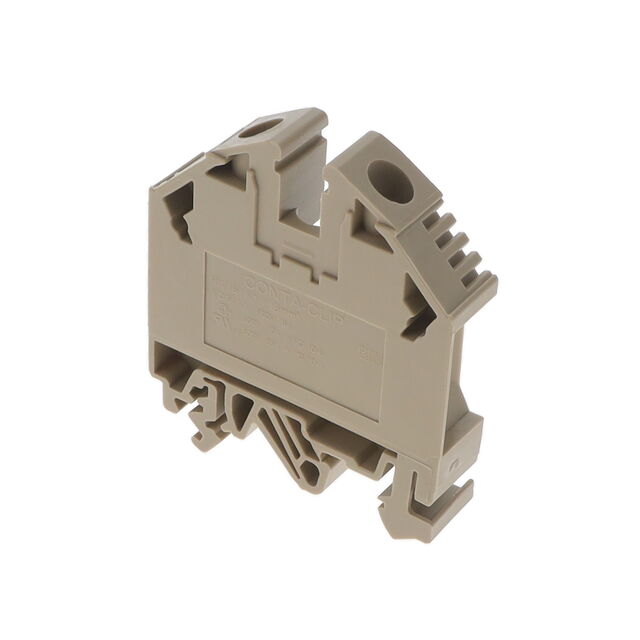

Terminal Block Connector 2 Position Feed Through Beige 6-10 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 1162.2 |
|---|---|
| Color | Beige |
| Current - IEC | 76 A |
| Current - UL | 65 A |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 15 mm |
| Terminal Width | 12 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 10 AWG |
| Wire Gauge or Range - AWG (Min) | 6 AWG |
| Wire Gauge or Range - mm² (Maximum) | 25 mm² |
| Wire Gauge or Range - mm² (Minimum) | 2.5 mm² |
