FMC1515400-120
ActiveFairview Microwave
CBL ASSY 7/16 DINPLUG-7/16 DINPL
FMC1515400-120
ActiveFairview Microwave
CBL ASSY 7/16 DINPLUG-7/16 DINPL
Description
General part information
FMC1515400-120

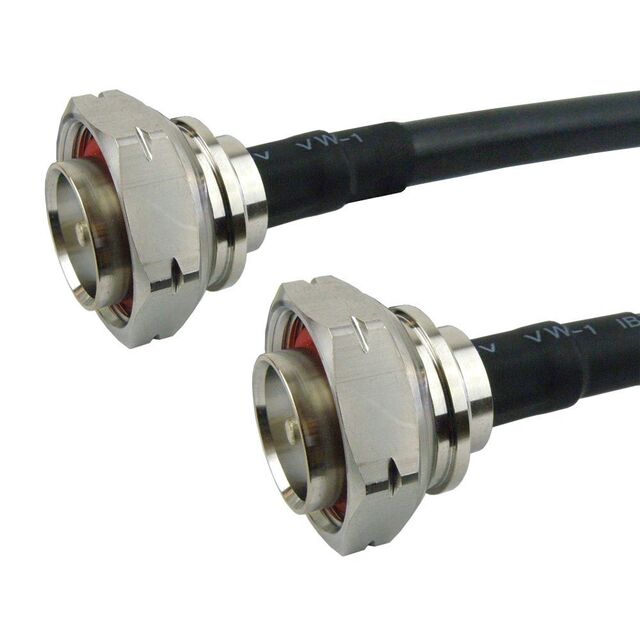

Cable Assembly Coaxial 7/16 DIN to 7/16 DIN LMR 400 120.0" (3.0m) 10.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC1515400-120 |
|---|---|
| 1st Connector | 7/16 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 7 mm |
| 1st Connector Dimension (2) | 16 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | 7/16 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 400 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Length | 120 in |
| Overall Impedance | 50 Ohms |
| Style | 7/16 DIN to 7/16 DIN |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
