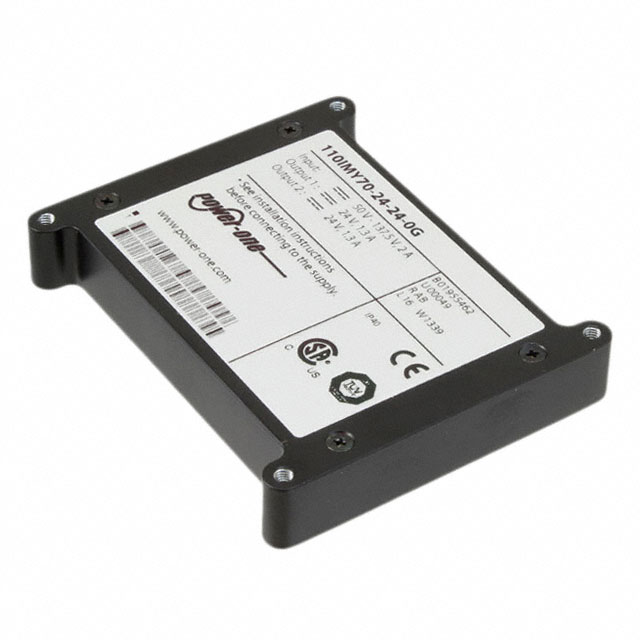

110IMY70-12-0TG

Active

Bel Power Solutions

DC DC CONVERTER 12V 90W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 12V 90W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	110IMY70-12-0TG	110IMY70 Series

Applications	Railway, ITE (Commercial)	Railway, ITE (Commercial)
Control Features	-	Active High, Enable
Current - Output (Max) [Max]	7.5 A	6 - 7.5 A
Efficiency	93 %	93 %
Features	OTP, SCP, OCP	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	203 °F	203 °F
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	19-DIP Module	19-DIP Module, 17 Leads, 19-DIP Module
Power (Watts)	90 W	90 W
Size / Dimension [x]	3 "	2.87 - 3 in
Size / Dimension [x]	76.2 mm	72.8 - 76.2 mm
Size / Dimension [y]	2.5 in	1.88 - 2.5 "
Size / Dimension [y]	63.5 mm	47.8 - 63.5 mm
Size / Dimension [z]	0.49 in	0.38 - 0.49 in
Size / Dimension [z]	12.5 mm	9.8 - 12.5 mm
Type	Isolated Module, Conformal Coated	Isolated Module, Conformal Coated
Voltage - Input (Max) [Max]	137.5 V	137.5 V
Voltage - Input (Min) [Min]	50 V	50 V
Voltage - Isolation	4.2 kV	4.2 kV
Voltage - Output 1	12 V	12 - 15 V

DC DC CONVERTER 15V 90W

Part	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Power (Watts)	Voltage - Input (Max) [Max]	Type	Control Features	Voltage - Output 1	Voltage - Input (Min) [Min]	Applications	Voltage - Isolation	Package / Case	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Number of Outputs
Bel Power Solutions 110IMY70-15-0ITZG	6 A	-40 °C	203 °F	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	90 W	137.5 V	Conformal Coated, Isolated Module	Active High, Enable	15 V	50 V	ITE (Commercial), Railway	4.2 kV	19-DIP Module, 17 Leads	Through Hole	0.38 in	9.8 mm	2.87 in	47.8 mm	1.88 "	72.8 mm	93 %	1
Bel Power Solutions 110IMY70-12-0TG	7.5 A	-40 °C	203 °F	OCP, OTP, SCP	90 W	137.5 V	Conformal Coated, Isolated Module		12 V	50 V	ITE (Commercial), Railway	4.2 kV	19-DIP Module	Through Hole	0.49 in	12.5 mm	3 "	63.5 mm	2.5 in	76.2 mm	93 %	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 231.79

General part information

Isolated Module, Conformal Coated DC DC Converter 1 Output 12V 7.5A 50V - 137.5V Input
