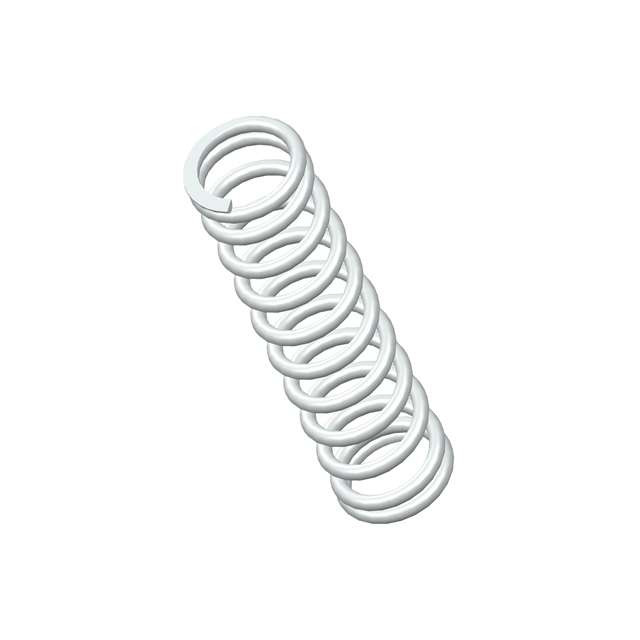

S-320CS
ActiveCentury Spring Corp
COMP O= .125,L= .50,W= .016
S-320CS
ActiveCentury Spring Corp
COMP O= .125,L= .50,W= .016
Description
General part information
S-320CS
COMP O= .125,L= .50,W= .016
Technical Specifications
Parameters and characteristics for this part
| Specification | S-320CS |
|---|---|
| Diameter - Inside | 0.093 in |
| Diameter - Outside | 0.125 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 0.5 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 6.7 lbs/in |
| Type | Compression |
| Wire Diameter | 0.016 in |
