CH1LDNS
ActiveCIT Relay and Switch
SWITCH PB SPDT 1A 125VAC
CH1LDNS
ActiveCIT Relay and Switch
SWITCH PB SPDT 1A 125VAC
Description
General part information
CH1LDNS

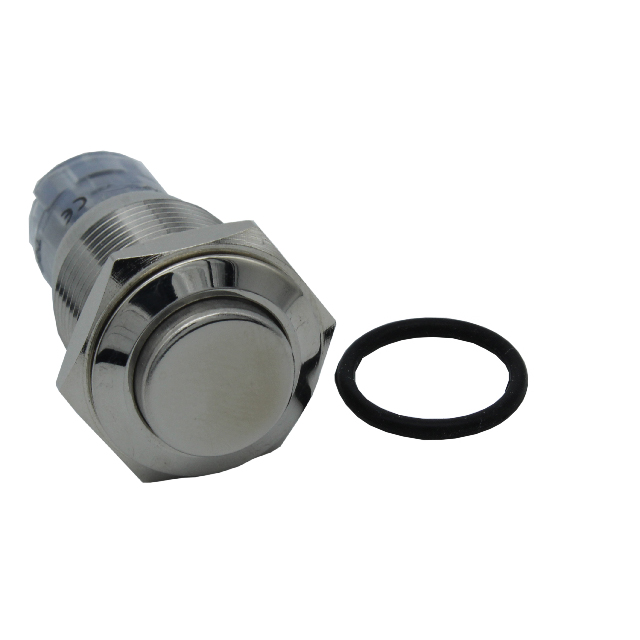

Pushbutton Switch SPDT Anti-Vandal Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | CH1LDNS |
|---|---|
| Actuator Type | Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Silver |
| Current Rating | 1 A |
| Electrical Life (Cycles) | 30000 Cycles |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 16 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Type | Anti-Vandal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
