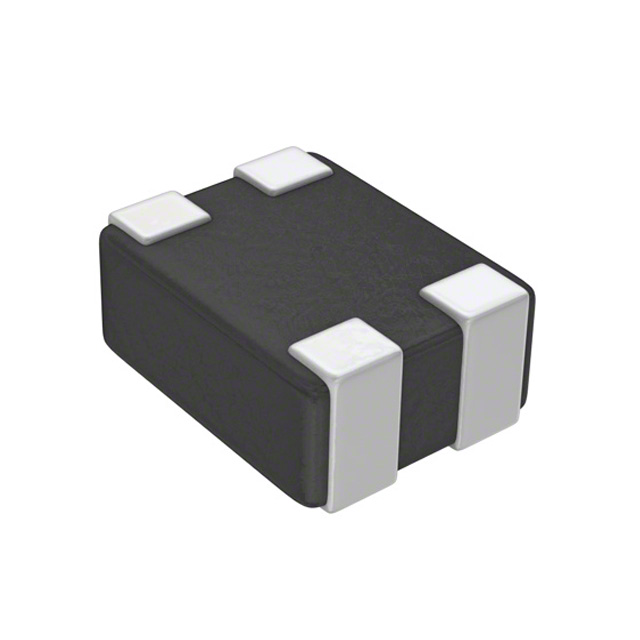

MCZ1210AD221T
NRNDTDK Corporation
CMC 350MA 2LN 220 OHM SMD
MCZ1210AD221T
NRNDTDK Corporation
CMC 350MA 2LN 220 OHM SMD
Description
General part information
MCZ1210AD221T
2 Line Common Mode Choke Surface Mount 220 Ohms @ 100 MHz 350mA DCR 300mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | MCZ1210AD221T |
|---|---|
| Current Rating (Max) | 350 mA |
| DC Resistance (DCR) (Max) | 300 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.024 in |
| Impedance | 220 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Package Leads | 4 Leads |
| Package Name | 0504 (1210 Metric) |
| Size / Dimension Length | 0.049 in |
| Size / Dimension Width | 0.039 in |
| Voltage Rating - DC | 5 V |
