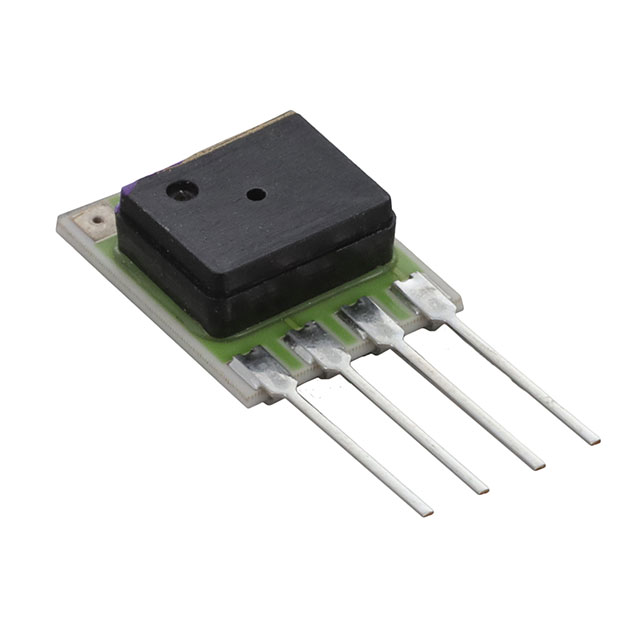

15 PSI-A-HGRADE-MINI

Active

Amphenol All Sensors Corporation

SENSOR 15PSIA .09V

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 15PSIA .09V

Technical Specifications

Parameters and characteristics for this part

SENSOR 15PSIA .09V

Part	Output Type	Port Style	Applications	Mounting Type	Features	Operating Pressure [custom]	Operating Pressure [custom]	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Accuracy	Termination Style	Voltage - Supply	Output [Max]	Output [Min]	Package / Case
Amphenol All Sensors Corporation 15 PSI-A-HGRADE-MINI	Wheatstone Bridge	No Port	Board Mount	Through Hole	Temperature Compensated	15 PSI	103.42 kPa	60 PSI	413.69 kPa	-25 °C	85 °C	0.5 %	PC Pin	16 VDC	90 mV	0 mV	4-SIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 15PSI (103.42kPa) Absolute 0 mV ~ 90 mV (12V) 4-SIP Module

Technical documentation and resources

No documents available
