383LX122M450B082VS
ActiveCornell Dubilier Knowles
CAP ALUM 1200UF 20% 450V SNAP TH
383LX122M450B082VS
ActiveCornell Dubilier Knowles
CAP ALUM 1200UF 20% 450V SNAP TH
Description
General part information
383LX122M450B082VS

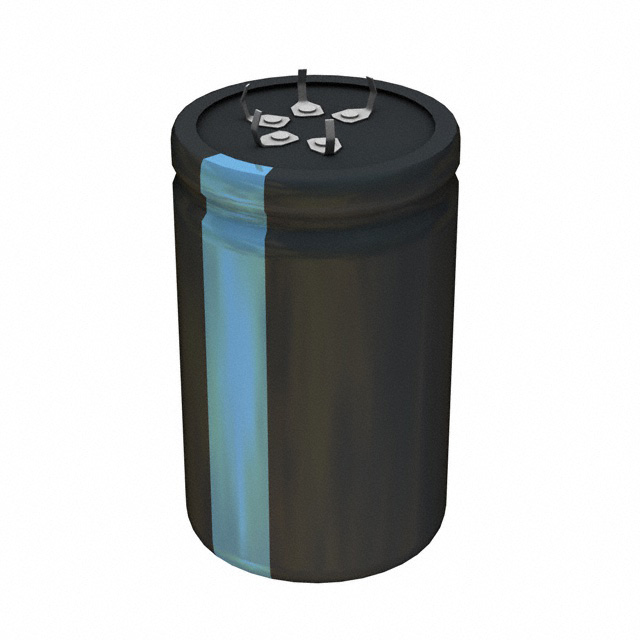

1200 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 5 Lead 152mOhm 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 383LX122M450B082VS |
|---|---|
| Applications | General Purpose |
| Capacitance | 1200 µF |
| ESR (Equivalent Series Resistance) | 152 mOhm |
| Height - Seated (Max) | 3.228 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package Leads | 5 Lead |
| Package Name | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 6.58 A, 4.7 A |
| Size / Dimension Diameter | 1.969 in |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
