200-BG
NRNDVisual Communications Company - VCC

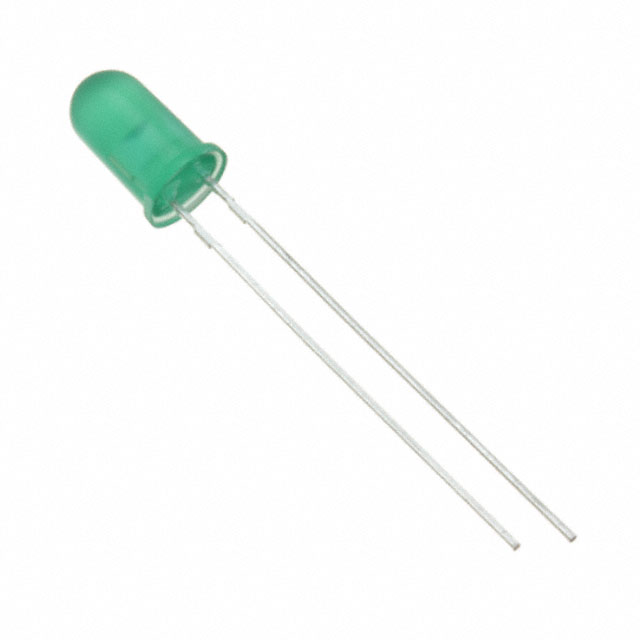

LED GREEN DIFFUSED 5MM T/H
200-BG
NRNDVisual Communications Company - VCC
LED GREEN DIFFUSED 5MM T/H
Description
General part information
200-BG
Green LED Indication - Discrete 2.4V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 200-BG |
|---|---|
| Color | Green |
| Current - Test | 20 mA |
| Height (Max) | 8.8 mm |
| Lens Size | 5 mm |
| Lens Size (Code) | T-1 3/4 |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 10 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | 5 mm |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 2.4 V |
| Wavelength - Peak | 565 nm |
