WNL322522RF-3R3M
ActiveTAI-TECH Advanced Electronics Co., Ltd.
FIXED IND 3.3UH 420MA 110MOHM SM
WNL322522RF-3R3M
ActiveTAI-TECH Advanced Electronics Co., Ltd.
FIXED IND 3.3UH 420MA 110MOHM SM
Description
General part information
WNL322522RF-3R3M

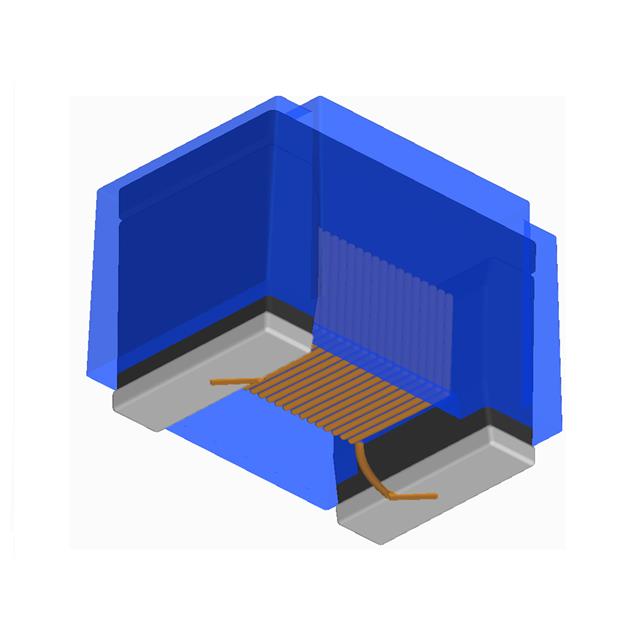

3.3 µH Unshielded Wirewound Inductor 420 mA 110mOhm Max 1210 (3225 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | WNL322522RF-3R3M |
|---|---|
| Current Rating | 0.42 A |
| DC Resistance (DCR) (Max) | 110 mOhm |
| Height - Seated (Max) | 0.094 in |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 7.96 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1210 (3225 Metric) |
| Package Name | 1210 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Tolerance | 20 % |
| Type | Wirewound |
