PQG3MRA112
ActiveSwitchcraft Inc.

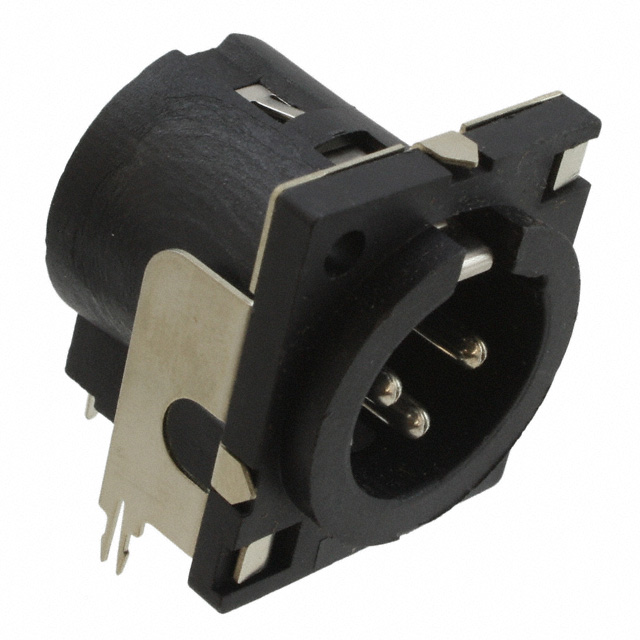

CONN RCPT MALE XLR 3P SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PQG3MRA112
ActiveSwitchcraft Inc.
CONN RCPT MALE XLR 3P SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PQG3MRA112 | PQG3MR Series |
|---|---|---|
| Applications | Audio | Audio |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Electro-Tin | Electro-Tin |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Board Lock, Ground, Board Guide | Board Lock, Ground, Board Guide |
| Insert Material | Thermoplastic, Glass Filled | Thermoplastic, Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Flange | Flange |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -34 °C | -34 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shell Material | Thermoplastic, Glass Filled | Thermoplastic, Glass Filled |
| Shell Size - Insert | XLR | XLR |
| Termination | Solder | Solder |
PQG3MR Series
CONN RCPT MALE XLR 3P SOLDER
| Part | Material Flammability Rating | Mounting Type | Termination | Features | Insert Material | Color | Shell Material | Applications | Contact Material | Primary Material | Orientation | Connector Type | Fastening Type | Shell Size - Insert | Contact Finish - Mating | Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. PQG3MRA112 | UL94 V-0 | Panel Mount, Right Angle, Through Hole | Solder | Board Guide, Board Lock, Ground | Thermoplastic, Glass Filled | Black | Thermoplastic, Glass Filled | Audio | Copper Alloy | Plastic | Keyed | Male Pins, Receptacle | Latch Lock | XLR | Electro-Tin | Flange | 85 °C | -34 °C |
Switchcraft Inc. PQG3MRA111 | UL94 V-0 | Panel Mount, Right Angle, Through Hole | Solder | Board Guide, Ground | Thermoplastic, Glass Filled | Black | Thermoplastic, Glass Filled | Audio | Copper Alloy | Plastic | Keyed | Male Pins, Receptacle | Latch Lock | XLR | Electro-Tin | Flange | 85 °C | -34 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.56 | |
| 10 | $ 10.42 | |||
| 25 | $ 9.42 | |||
| 50 | $ 8.74 | |||
| 100 | $ 8.13 | |||
| 300 | $ 7.27 | |||
| 500 | $ 6.91 | |||
| 1000 | $ 6.47 | |||
Description
General part information
PQG3MR Series
3 Position Circular Connector Receptacle, Male Pins Solder
