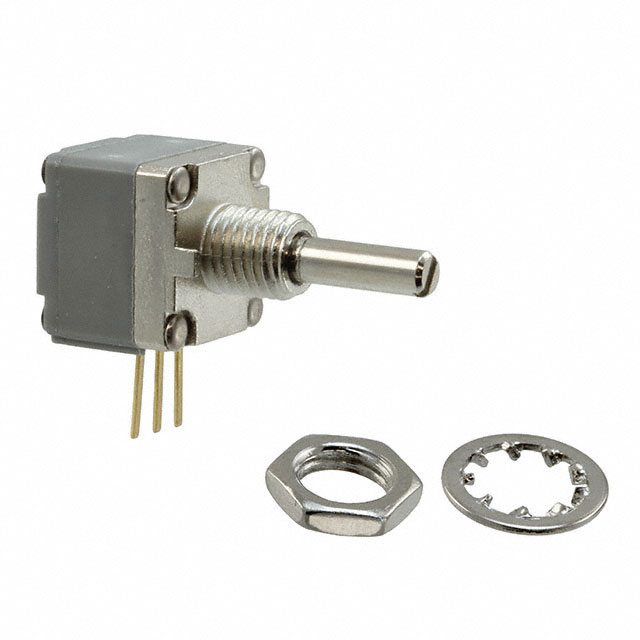

Specification	P260P-D1AS2AB10K

Actuator Diameter	3.175 mm
Actuator Length	0.63 in
Actuator Type	Slotted
Adjustment Type	Side Adjustment
Built in Switch	None
Bushing Thread	1/4-32
Features	Sealed
Mounting Type	Panel Mount
Number of Gangs	1
Number of Turns	1 turns
Power (Watts)	500 mW
Power (Watts) Options	1/2W
Resistance	10 kOhm
Resistive Material	Conductive Plastic
Rotation	295 °
Size - Body Face Length	0.5 in
Size - Body Face Width	0.5 in
Size - Body Shape	Square
Taper	Linear
Termination Style	PC Pins
Tolerance	10 %

P260P Series

Part	Number of Turns	Adjustment Type	Power (Watts)	Power (Watts) Options	Actuator Length	Actuator Diameter	Mounting Type	Actuator Type	Size - Body Face Length	Size - Body Shape	Size - Body Face Width	Number of Gangs	Resistive Material	Built in Switch	Tolerance	Taper	Resistance	Rotation	Features	Bushing Thread	Termination Style	Size - Body Height
TT Electronics/BI P260P-D1BF2CC10K	1 turns	Side Adjustment	250 mW	1/4W	0.63 in	6.35 mm	Panel Mount	Flatted	0.5 in	Square	0.5 in	1	Conductive Plastic	None	10 %	Reverse Logarithmic	10 kOhm	295 °	Sealed	3/8-32	PC Pins
TT Electronics/BI P260P-S2BF4CA200K	1 turns	Side Adjustment	250 mW	1/4W	0.945 in	6.35 mm	Panel Mount	Flatted	0.5 in	Square	0.5 in	2	Conductive Plastic	None	10 %	Logarithmic	200 kOhm	295 °	Sealed	3/8-32	PC Pins
TT Electronics/BI P260P-D1AS1CB50K	1 turns	Side Adjustment	500 mW	1/2W	0.472 in	0.126 in	Panel Mount	Slotted	0.5 in	Square	0.5 in	1	Conductive Plastic	None	10 %	Linear	50 kOhm	295 °	Sealed	1/4-32	PC Pins
TT Electronics/BI P260P-D1BS3CB100	1 turns	Side Adjustment	500 mW	1/2W	0.787 in	6.35 mm	Panel Mount	Slotted	0.5 in	Square	0.5 in	1	Conductive Plastic	None	10 %	Linear	100 Ohms	295 °	Sealed	3/8-32	PC Pins
TT Electronics/BI P260P-S2AS1CB20K	1 turns	Side Adjustment	500 mW	1/2W	0.472 in	0.126 in	Panel Mount	Slotted	0.5 in	Square	0.5 in	2	Conductive Plastic	None	10 %	Linear	20 kOhm	295 °	Sealed	1/4-32	PC Pins
TT Electronics/BI P260P-S1AS2CB5K	1 turns	Side Adjustment	500 mW	1/2W	0.63 in	0.126 in	Panel Mount	Slotted	0.5 in	Square	0.5 in	1	Conductive Plastic	None	10 %	Linear	5 kOhm	295 °	Sealed	1/4-32	PC Pins
TT Electronics/BI P260P-S2BS3CB500K	1 turns	Side Adjustment	500 mW	1/2W	0.787 in	6.35 mm	Panel Mount	Slotted	0.5 in	Square	0.5 in	2	Conductive Plastic	None	10 %	Linear	500 kOhm	295 °	Sealed	3/8-32	PC Pins
TT Electronics/BI P260P-S2BS3CA10K	1 turns	Side Adjustment	250 mW	1/4W	0.787 in	6.35 mm	Panel Mount	Slotted	0.5 in	Square	0.5 in	2	Conductive Plastic	None	10 %	Logarithmic	10 kOhm	295 °		3/8-32	PC Pins	0.5 in
TT Electronics/BI P260P-S2BF4CA500K	1 turns	Side Adjustment	250 mW	1/4W	0.945 in	6.35 mm	Panel Mount	Flatted	0.5 in	Square	0.5 in	2	Conductive Plastic	None	10 %	Logarithmic	500 kOhm	295 °	Sealed	3/8-32	PC Pins
TT Electronics/BI P260P-D1AF3CB10K	1 turns	Side Adjustment	500 mW	1/2W	0.787 in	0.126 in	Panel Mount	Flatted	0.5 in	Square	0.5 in	1	Conductive Plastic	None	10 %	Linear	10 kOhm	295 °	Sealed	1/4-32	PC Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

P260P-D1AS2AB10K | Datasheet
