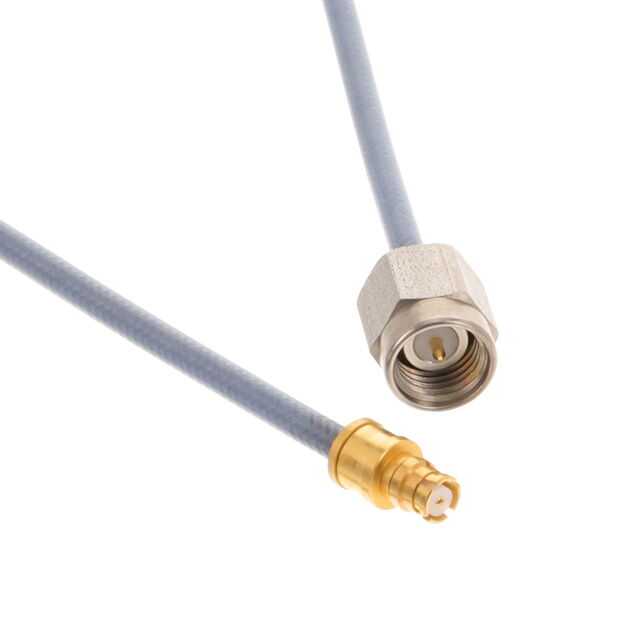

MINIBEND SR-11
ActiveHuber+Suhner, Inc.
CBL ASSY SMA-SMB PLUG-JACK 11"
MINIBEND SR-11
ActiveHuber+Suhner, Inc.
CBL ASSY SMA-SMB PLUG-JACK 11"
Description
General part information
MINIBEND SR-11
Cable Assembly Coaxial SMA to SMB 0.086" Semi-Rigid Cable 11.000" (279.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | MINIBEND SR-11 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Diameter | 0.086 " |
| Cable Type | Rigid Cable, Semi, Semi-Rigid Cable |
| Cable Type Size | 0.086, 0.086 " |
| Color | Blue |
| Frequency - Max | 20 Gbps |
| Length | 11 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMB, SMA |
