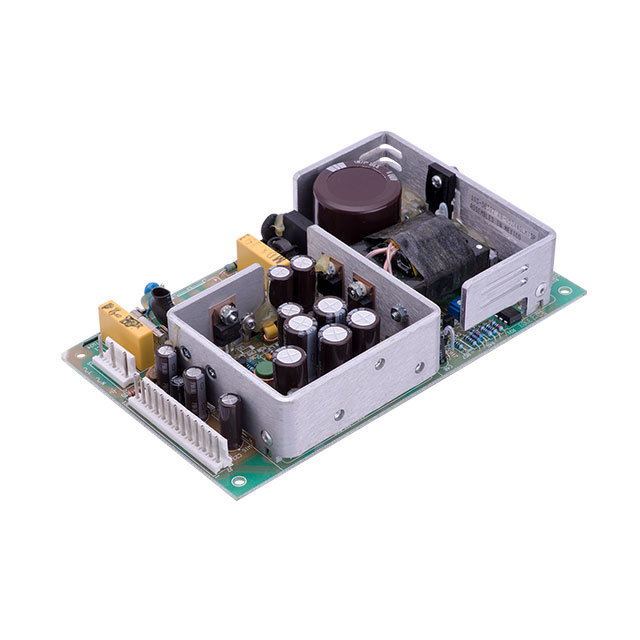

GLC75DG
ObsoleteSL POWER / Advanced Energy
AC/DC CNVRTR 5.1V 24V +/-12 75W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GLC75DG |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 8 A |
| Current - Output 2 | 3 A |
| Current - Output 4 | 3 A |
| Efficiency | 85 % |
| Features | Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 4 |
| Power (Watts) | 75 W |
| Size / Dimension [x] | 146 mm |
| Size / Dimension [x] | 5.75 in |
| Size / Dimension [y] | 86.4 mm |
| Size / Dimension [y] | 3.4 in |
| Size / Dimension [z] | 39.7 mm |
| Size / Dimension [z] | 1.56 in |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 5.1 V |
| Voltage - Output 2 | 24 V |
| Voltage - Output 3 | -12 V |
| Voltage - Output 4 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GLC75DG
Open Frame AC DC Converters 4 Output 5.1V 24V -12V 12V 90 ~ 264 VAC Input
