100023830
ActiveTelegartner Inc
TNC ADAPT 90 M-F
100023830
ActiveTelegartner Inc
TNC ADAPT 90 M-F
Description
General part information
100023830

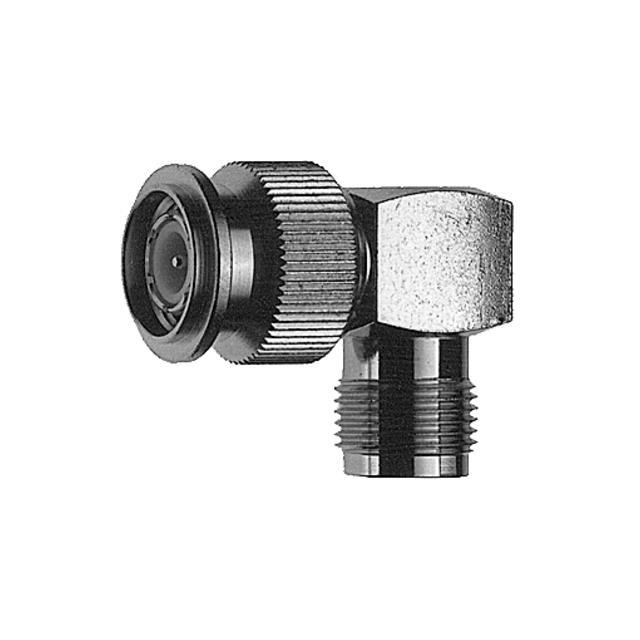

Adapter Coaxial Connector TNC Plug, Male Pin To TNC Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | 100023830 |
|---|---|
| Adapter Series | TNC to TNC |
| Adapter Type | Plug to Jack |
| Center Gender | Male, Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | TNC Plug, Male Pin |
| Convert To (Adapter End) | TNC Jack, Female Socket |
| Fastening Type | Threaded |
| Frequency - Max | 4 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Style | Right Angle |
