FMCA2769-24
ActiveFairview Microwave
CBL ASSY TYPE NJACK-TNCPLUG 24
FMCA2769-24
ActiveFairview Microwave
CBL ASSY TYPE NJACK-TNCPLUG 24
Description
General part information
FMCA2769-24

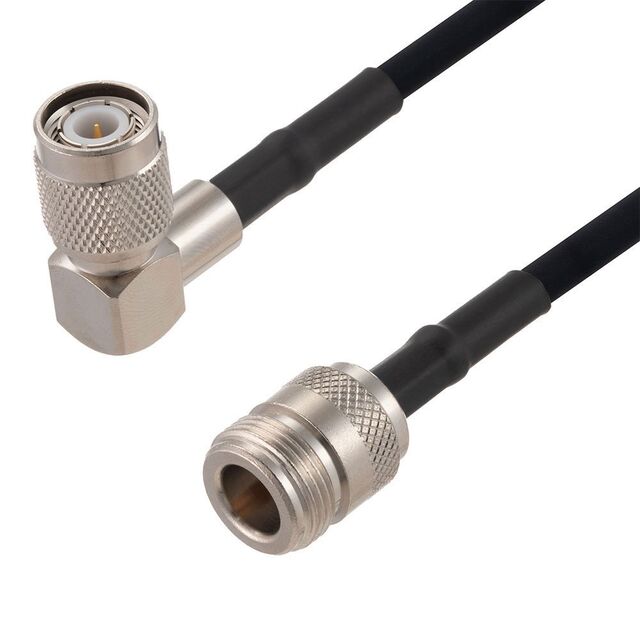

Cable Assembly Coaxial N-Type to TNC RG-223 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2769-24 |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Length | 24 in |
| Overall Impedance | 50 Ohms |
| Style | N-Type, TNC |
