MAL213216102E3
ActiveVishay Dale

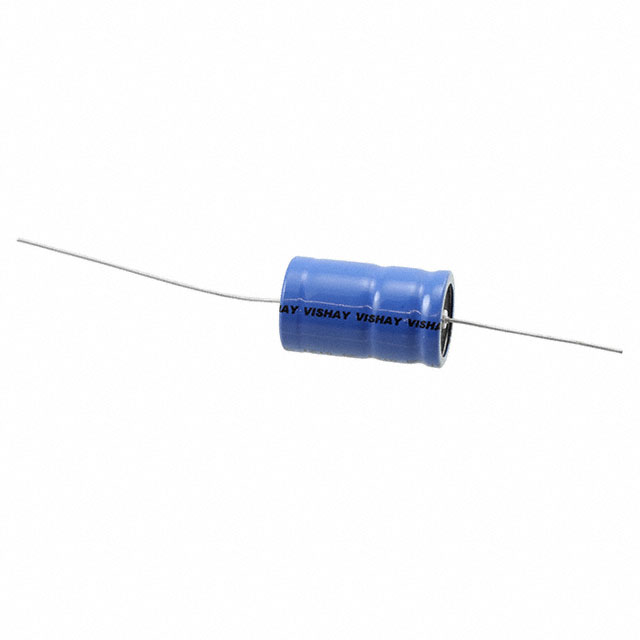

CAP ALUM 1000UF 25V AXIAL TH
MAL213216102E3
ActiveVishay Dale
CAP ALUM 1000UF 25V AXIAL TH
Description
General part information
MAL213216102E3
1000 µF 25 V Aluminum Electrolytic Capacitors Axial, Can 170mOhm @ 100Hz 15000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL213216102E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 1000 µF |
| ESR (Equivalent Series Resistance) | 170 mOhm |
| Lifetime | 15000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 1 A |
| Size / Dimension Diameter | 0.709 in |
| Size / Dimension Length | 1.181 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 25 VAC |
