Description
General part information

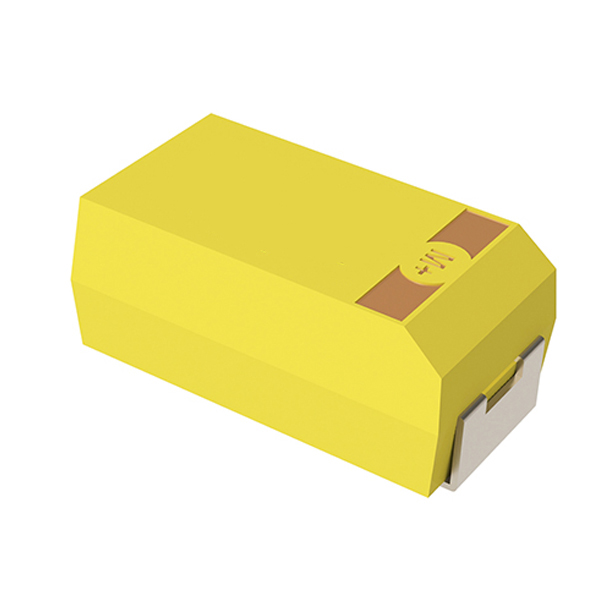

T510E108K004AHE018
1000 µF Molded Tantalum Capacitors 4 V 2924 (7361 Metric) 18mOhm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T510E108K004AHE018 |
|---|---|
| Capacitance | 1000 µF |
| ESR (Equivalent Series Resistance) | 18 mOhm |
| Features | General Purpose |
| Height - Seated (Max) | 0.15 in |
| Lifetime | 2000 Hrs |
| Manufacturer Size Code | E |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2924 (7361 Metric) |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.236 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 4 V |
