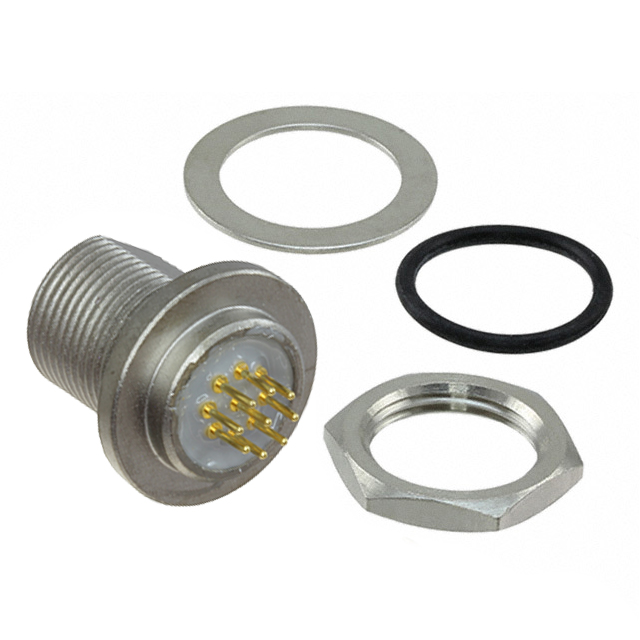

TS2P9M26-BPE

Active

Switchcraft Inc.

CONN CIRCULAR PIN 9 POS SOLDER ST THRU-HOLE 9 TERMINAL 1 PORT BULK

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN CIRCULAR PIN 9 POS SOLDER ST THRU-HOLE 9 TERMINAL 1 PORT BULK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TS2P9M26-BPE	TS2P9M Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	9	9
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Crimp, Solder Cup, Solder
Voltage Rating	30 VAC	30 VAC

CONN CIRCULAR PIN 9 POS SOLDER CUP ST PANEL MOUNT 9 TERMINAL 1 PORT BULK

Part	Primary Material	Color	Contact Finish - Mating	Shell Finish	Mounting Feature	Orientation	Shell Material	Termination	Number of Positions	Connector Type	Contact Material	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Insert Material	Shielding	Voltage Rating	Mounting Type
Switchcraft Inc. TS2P9M26	Metal	Silver	Gold	Electroless Nickel	Bulkhead - Rear Side Nut	Keyed	Copper Alloy	Crimp, Solder Cup	9	Male Pins, Receptacle	Copper Alloy	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	135 °C	-40 °C	IP66, IP67, IP68	Liquid Crystal Polymer (LCP)	Shielded	30 VAC
Switchcraft Inc. TS2P9M26-BPE	Metal	Silver	Gold	Electroless Nickel	Bulkhead - Front Side Nut	Keyed	Copper Alloy	Solder	9	Male Pins, Receptacle	Copper Alloy	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	135 °C	-40 °C	IP66, IP67, IP68	Liquid Crystal Polymer (LCP)	Shielded	30 VAC	Panel Mount, Through Hole
Switchcraft Inc. TS2P9M26-BP	Metal	Silver	Gold	Electroless Nickel	Bulkhead - Front Side Nut	Keyed	Copper Alloy	Solder	9	Male Pins, Receptacle	Copper Alloy	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	135 °C	-40 °C	IP66, IP67, IP68	Liquid Crystal Polymer (LCP)	Shielded	30 VAC	Panel Mount, Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 7.23
Digikey	Bulk	1	$ 34.02
		10	$ 26.28

General part information

9 Position Circular Connector Receptacle, Male Pins Solder
