YB26SKW01

Active

NKK SWITCHES

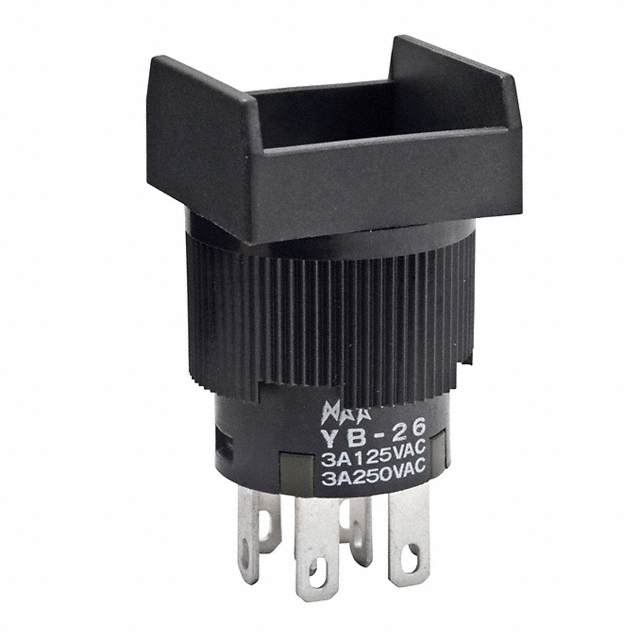

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB26SKW01

Active

NKK SWITCHES

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15.13
		10	$ 13.57
		25	$ 12.97
		40	$ 12.30
		80	$ 11.85
		230	$ 11.11
		440	$ 10.29
		945	$ 9.22
Newark	Each	1	$ 30.85
		5	$ 29.30
		10	$ 27.16
		25	$ 24.78
		50	$ 21.44
		100	$ 20.01
		250	$ 18.23

Description

General part information

YB26SK Series

Pushbutton Switch DPDT Standard Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YB26SKW01	YB26SK Series

Actuator Marking	No Marking	No Marking
Actuator Type	Plunger for Cap	Button, Square, Plunger for Cap
Circuit	DPDT	DPDT
Color - Actuator/Cap	-	Green, Clear, Clear (Red Filter/Diffuser), Blue
Current Rating (Amps)	3 A	0.4 - 3 A
Electrical Life	100000 Cycles	100000 Cycles
Features	Voltage Reduction Lighting	Voltage Reduction Lighting
Illumination Type, Color	-	LED, Green, Red, Green/Red, Amber, White
Illumination Voltage (Nominal)	-	1.9 - 24 VDC
Mechanical Life	200000 Cycles	200000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	50 - 70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Switch Function	On-On	On-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder, PC Pin
Termination Style	2.8 mm	2.8 mm
Type	Standard	Standard, Illuminated
Voltage Rating - AC	125 V	28 - 125 V
Voltage Rating - DC	30 V	28 - 30 V

YB26SK Series

SWITCH PUSHBUTTON DPDT 3A 125V

Part	Features	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Termination Style	Termination Style	Termination Style	Voltage Rating - DC	Mechanical Life	Electrical Life	Current Rating (Amps)	Voltage Rating - AC	Type	Color - Actuator/Cap	Actuator Marking	Panel Cutout Dimensions [diameter]	Circuit	Mounting Type	Illumination Voltage (Nominal)	Illumination Type, Color
NKK SWITCHES YB26SKW01-FB	Voltage Reduction Lighting	On-On	70 °C	-25 °C	Button, Square	0.11 in	Quick Connect, Solder	2.8 mm	30 V	200000 Cycles	100000 Cycles	3 A	125 V	Standard	Green	No Marking	16 mm	DPDT	Panel Mount, Front
NKK SWITCHES YB26SKW01-5F-JF	Voltage Reduction Lighting	On-On	50 °C	-25 °C	Button, Square	0.11 in	Quick Connect, Solder	2.8 mm	30 V	200000 Cycles	100000 Cycles	3 A	125 V	Illuminated, Standard	Clear	No Marking	16 mm	DPDT	Panel Mount, Front	2.2 VDC	Green, LED
NKK SWITCHES YB26SKW01-1F12-JA	Voltage Reduction Lighting	On-On	50 °C	-25 °C	Button, Square	0.11 in	Quick Connect, Solder	2.8 mm	30 V	200000 Cycles	100000 Cycles	3 A	125 V	Illuminated, Standard	Clear	No Marking	16 mm	DPDT	Panel Mount, Front	12 VDC	Green, LED
NKK SWITCHES YB26SKW01-6F-JB	Voltage Reduction Lighting	On-On	50 °C	-25 °C	Button, Square	0.11 in	Quick Connect, Solder	2.8 mm	30 V	200000 Cycles	100000 Cycles	3 A	125 V	Illuminated, Standard	Clear	No Marking	16 mm	DPDT	Panel Mount, Front	3.3 VDC	Green, LED
NKK SWITCHES YB26SKW01-5C12-JB	Voltage Reduction Lighting	On-On	50 °C	-25 °C	Button, Square	0.11 in	Quick Connect, Solder	2.8 mm	30 V	200000 Cycles	100000 Cycles	3 A	125 V	Illuminated, Standard	Clear	No Marking	16 mm	DPDT	Panel Mount, Front	12 VDC	LED, Red
NKK SWITCHES YB26SKW01-1CF24-JB	Voltage Reduction Lighting	On-On	50 °C	-25 °C	Button, Square	0.11 in	Quick Connect, Solder	2.8 mm	30 V	200000 Cycles	100000 Cycles	3 A	125 V	Illuminated, Standard	Clear	No Marking	16 mm	DPDT	Panel Mount, Front	24 V	Green/Red, LED
NKK SWITCHES YB26SKW01-1CF24-JA	Voltage Reduction Lighting	On-On	50 °C	-25 °C	Button, Square	0.11 in	Quick Connect, Solder	2.8 mm	30 V	200000 Cycles	100000 Cycles	3 A	125 V	Illuminated, Standard	Clear	No Marking	16 mm	DPDT	Panel Mount, Front	24 V	Green/Red, LED
NKK SWITCHES YB26SKW01-5C-JC	Voltage Reduction Lighting	On-On	50 °C	-25 °C	Button, Square	0.11 in	Quick Connect, Solder	2.8 mm	30 V	200000 Cycles	100000 Cycles	3 A	125 V	Illuminated, Standard	Clear (Red Filter/Diffuser)	No Marking	16 mm	DPDT	Panel Mount, Front	1.9 VDC	LED, Red
NKK SWITCHES YB26SKW01-5C24-JC		On-On	50 °C	-25 °C	Button, Square	0.11 in	Quick Connect, Solder	2.8 mm	30 V	200000 Cycles	100000 Cycles	3 A	125 V	Illuminated, Standard	Clear (Red Filter/Diffuser)		16 mm	DPDT	Panel Mount, Front	1.9 VDC	LED, Red
NKK SWITCHES YB26SKW01-5F05-JB	Voltage Reduction Lighting	On-On	50 °C	-25 °C	Button, Square	0.11 in	Quick Connect, Solder	2.8 mm	30 V	200000 Cycles	100000 Cycles	3 A	125 V	Illuminated, Standard	Clear	No Marking	16 mm	DPDT	Panel Mount, Front	5 VDC	Green, LED
