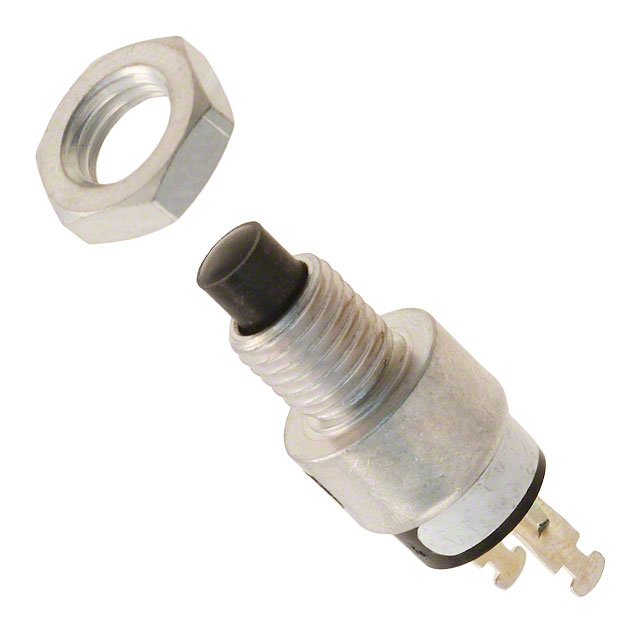

30-2UL

Active

Grayhill Inc.

SWITCH PUSH SPST-NC 5A 120V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NC 5A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	30-2UL

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST-NC
Color - Actuator/Cap	Black
Current Rating (Amps)	5 A
Electrical Life	6000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	6.75 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	120 V

SWITCH PUSH SPST-NC 5A 120V

Part	Current Rating (Amps)	Mounting Type	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Termination Style	Circuit	Electrical Life	Actuator Type	Voltage Rating - AC	Switch Function	Type	Panel Cutout Dimensions [diameter]
Grayhill Inc. 30-2UL	5 A	Panel Mount, Rear	No Marking	85 °C	-40 °C	Black	Solder Lug	SPST-NC	6000 Cycles	Round, Plunger	120 V	On-Mom	Standard	6.75 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Rear
