ZCAT2235-1030A-BK
ActiveTDK Corporation
FERRITE CORE CLAMP CORE 30-MATERIAL
ZCAT2235-1030A-BK
ActiveTDK Corporation
FERRITE CORE CLAMP CORE 30-MATERIAL
Description
General part information
ZCAT2235-1030A-BK

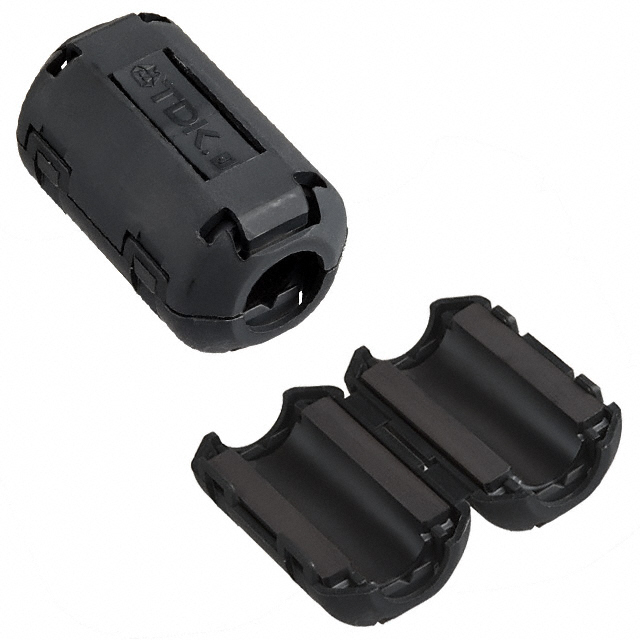

Hinged (Snap On) Free Hanging Ferrite Core 100Ohm @ 100MHz ~ 500MHz ID 0.394" Dia (10.00mm) OD 0.787" W x 0.846" H (20.00mm x 21.50mm) Length 1.378" (35.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | ZCAT2235-1030A-BK |
|---|---|
| Design | Hinged (Snap On) |
| Impedance | 100 Ohm |
| Inner Dimension (Diameter) | 0.394 in |
| Length | 1.378 in |
| Material | 30 |
| Material Temperature Rating | 30 °C |
| Mounting Type | Free Hanging |
| Outer Dimension Height | 0.846 in |
| Outer Dimension Width | 0.787 in |
| Type | Round |
