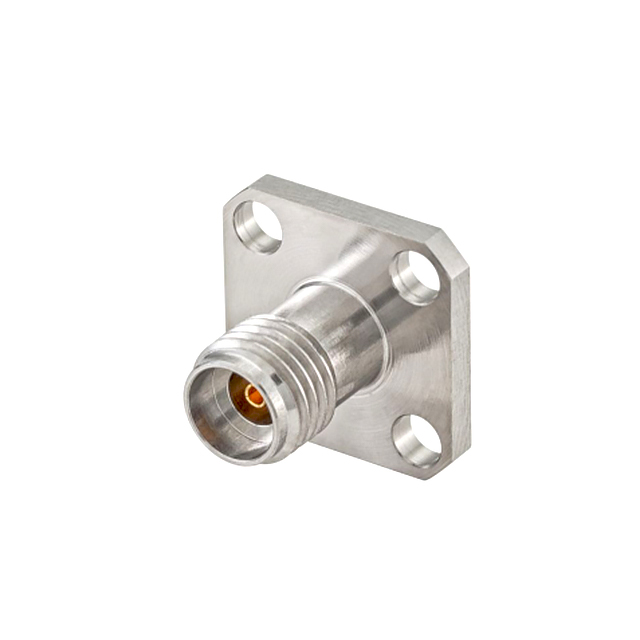

02K421-800S3

Active

Rosenberger

CONN RPC2.92 JACK STR 50OHM

Search across all available documentation for this part.

Active

Rosenberger

CONN RPC2.92 JACK STR 50OHM

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RPC2.92 JACK STR 50OHM

Part	Contact Termination	Number of Ports	Impedance	Housing Color	Connector Type	Connector Style	Shield Termination	Center Contact Material	Body Material	Voltage Rating	Mating Cycles	Dielectric Material	Mounting Feature	Frequency - Max [Max]	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]
Rosenberger 02K421-271S3	Solder	1	50 Ohms	Silver	Female Socket, Jack	2.92 mm	Solder	Beryllium Copper	Stainless Steel	250 VDC	500	Polystyrene (PS)	Flange	40 GHz	Gold	85 °C	-40 °C
Rosenberger 02K421-800S3	Solder	1	50 Ohms	Silver	Female Socket, Jack	2.92 mm	Solder	Beryllium Copper	Stainless Steel	250 VDC	500	Polystyrene (PS)	Flange	40 GHz	Gold	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Technical documentation and resources
