Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	125-0701-241	125-0701 Series

Body Finish	Gold	Gold
Body Material	Beryllium Copper, Brass	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	SMPM	SMPM
Connector Type	Male Pin, Jack	Male Pin, Jack, Plug
Contact Termination	-	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On	Snap-On
Features	Full Detent	Full Detent
Frequency - Max [Max]	65 GHz	26.5 - 65 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Feature	Flange	Flange
Mounting Type	Surface Mount	Surface Mount, Cutout, Board Edge, End Launch
Number of Ports	1	1 - 4
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Compression	Compression, Solder
Voltage Rating	325 V	325 V

125-0701 Series

SMPM COMPRESSION CONNECTOR, MICR

Part	Shield Termination	Body Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Center Contact Material	Body Finish	Center Contact Plating	Impedance	Number of Ports	Fastening Type	Dielectric Material	Connector Style	Frequency - Max [Max]	Connector Type	Mounting Feature	Housing Color	Voltage Rating	Mounting Type	Contact Termination

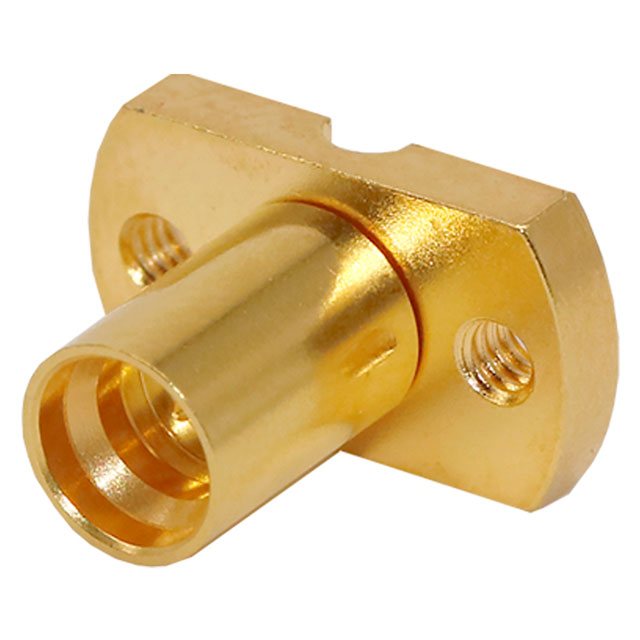

Cinch Connectivity Solutions Johnson 125-0701-241	Compression	Beryllium Copper, Brass	Full Detent	-65 ░C	165 °C	500	Beryllium Copper	Gold	Gold	50 Ohms	1	Snap-On	Polytetrafluoroethylene (PTFE)	SMPM	65 GHz	Jack, Male Pin	Flange	Gold	325 V	Surface Mount
Cinch Connectivity Solutions Johnson 125-0701-251	Compression	Beryllium Copper, Brass	Full Detent	-65 ░C	165 °C	500	Beryllium Copper	Gold	Gold	50 Ohms	1	Snap-On	Polytetrafluoroethylene (PTFE)	SMPM	65 GHz	Jack, Male Pin	Flange	Gold	325 V	Surface Mount
Cinch Connectivity Solutions Johnson 125-0701-231	Solder	Beryllium Copper	Full Detent	-65 ░C	165 °C		Beryllium Copper	Gold	Gold	50 Ohms	1	Snap-On	Polytetrafluoroethylene (PTFE)	SMPM	26.5 GHz	Male Pin, Plug		Gold	325 V	Surface Mount	Solder
Cinch Connectivity Solutions Johnson 125-0701-831	Solder	Beryllium Copper, Brass	Full Detent	-65 ░C	165 °C		Beryllium Copper	Gold	Gold	50 Ohms	4	Snap-On	Polytetrafluoroethylene (PTFE)	SMPM	65 GHz	Male Pin, Plug		Gold	325 V	Board Edge, Cutout, Surface Mount	Solder
Cinch Connectivity Solutions Johnson 125-0701-811	Solder	Beryllium Copper	Full Detent	-65 ░C	165 °C		Beryllium Copper	Gold	Gold	50 Ohms	1	Snap-On	Polytetrafluoroethylene (PTFE)	SMPM	26.5 GHz	Male Pin, Plug		Gold	325 V	Board Edge, End Launch	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 15.94

Description

General part information

125-0701 Series

SMPM Connector Jack, Male Pin 50 Ohms Surface Mount

Documents

Technical documentation and resources

No documents available
