HS2P3F20-BP
ActiveSwitchcraft Inc.

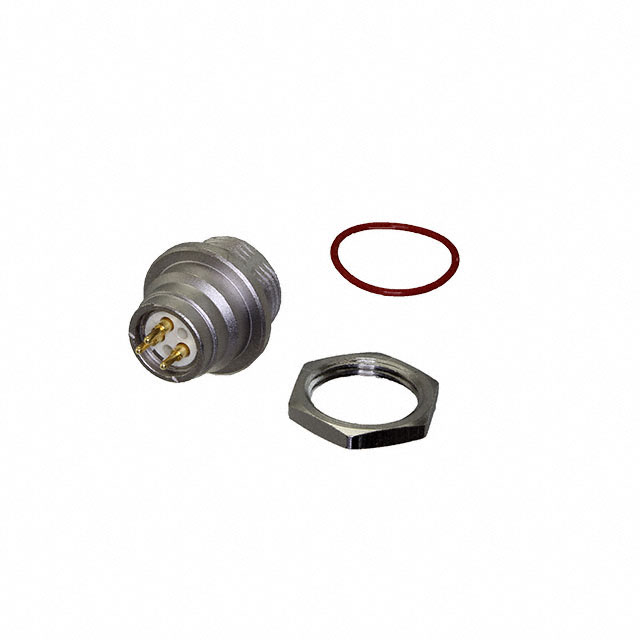

CONN RCPT FMALE 3POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HS2P3F20-BP
ActiveSwitchcraft Inc.
CONN RCPT FMALE 3POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HS2P3F20-BP | HS2P3F Series |
|---|---|---|
| Applications | Audio, Testing Equipment & Measurement, Agriculture, Medical, General | Audio, Testing Equipment & Measurement, Agriculture, Medical, General |
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | - | UL94 HF-1 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Operating Temperature [Max] | 135 °C | 135 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Electroless Nickel | Electroless Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shielding | Shielded | Shielded |
| Termination | Solder | Crimp, Solder Cup, Solder |
| Voltage Rating | 125 VAC | 125 VAC |
HS2P3F Series
CONN RCPT FMALE 3POS GOLD CRIMP
| Part | Fastening Type | Insert Material | Mounting Feature | Shell Finish | Contact Material | Color | Termination | Applications | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Primary Material | Shell Material | Voltage Rating | Orientation | Shielding | Ingress Protection | Contact Finish - Mating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. HS2P3F20 | Push-Pull | Liquid Crystal Polymer (LCP) | Bulkhead - Rear Side Nut | Electroless Nickel | Copper Alloy | Silver | Crimp, Solder Cup | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | UL94 HF-1 | 135 °C | -40 °C | Receptacle, Female Sockets | Metal | Copper Alloy | 125 VAC | Keyed | Shielded | IP66, IP67, IP68 | Gold | |
Switchcraft Inc. HS2P3F20-BP | Push-Pull | Liquid Crystal Polymer (LCP) | Bulkhead - Front Side Nut | Electroless Nickel | Copper Alloy | Silver | Solder | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | 135 °C | -40 °C | Receptacle, Female Sockets | Metal | Copper Alloy | 125 VAC | Keyed | Shielded | IP66, IP67, IP68 | Gold | Panel Mount, Through Hole | |
Switchcraft Inc. HS2P3F20-BPE | Push-Pull | Liquid Crystal Polymer (LCP) | Bulkhead - Front Side Nut | Electroless Nickel | Copper Alloy | Silver | Solder | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | 135 °C | -40 °C | Receptacle, Female Sockets | Metal | Copper Alloy | 125 VAC | Keyed | Shielded | IP66, IP67, IP68 | Gold | Panel Mount, Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.78 | |
| 10 | $ 19.10 | |||
| 25 | $ 17.30 | |||
Description
General part information
HS2P3F Series
3 Position Circular Connector Receptacle, Female Sockets Solder
